STM32L152QEH6

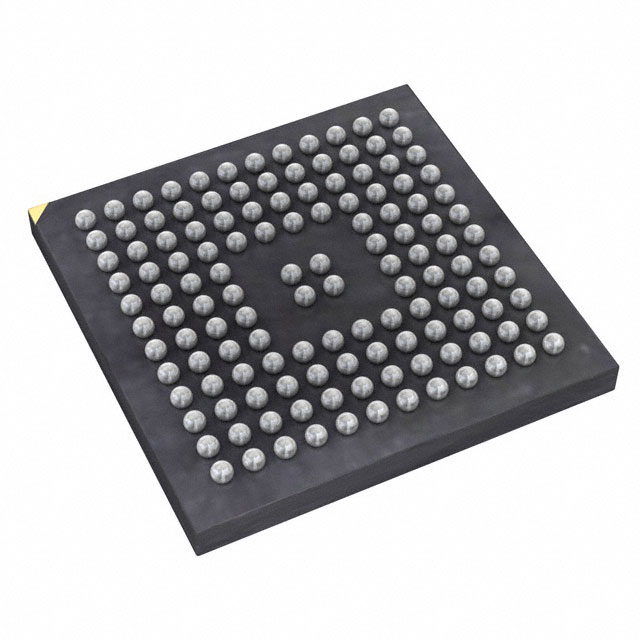

STMICROELECTRONICS  STM32L152QEH6  微控制器, 32位, 超低功率, ARM 皮质-M3, 32 MHz, 512 KB, 80 KB, 132 引脚, UFBGA

The is an ultra-low-power STM32 L1 series 32-bit Microcontroller incorporates the connectivity power of the universal serial bus USB with the high-performance ARM Cortex-M3 RISC core operating at a frequency of 32MHz 33.3 DMIPS. It features a memory protection unit MPU, high-speed embedded memories Flash memory up to 512kB and RAM up to 80KB and an extensive range of enhanced I/Os and peripherals connected to two APB buses. The devices offer two operational amplifiers, one 12-bit ADC, two DACs, two ultra-low-power comparators, one general-purpose 32-bit timer, six general-purpose 16-bit timers and two basic timers, which can be used as time bases. The device contain standard and advanced communication interfaces - two I²Cs, two I²Ss, three SPIs, three USARTs, two UARTs and an USB.

.

1.25 DMIPS/MHz Dhrystone 2.1

.

Low-power BOR brownout reset with 5 selectable thresholds

.

Ultralow-power POR/PDR

.

Programmable voltage detector PVD

.

1 to 24MHz Crystal oscillator

.

32kHz Oscillator for RTC with calibration

.

Internal 16MHz oscillator factory trimmed RC±1% with PLL option

.

Internal low-power 37kHz RC

.

Internal multispeed low-power 65kHz to 4.2MHz clock

.

PLL for CPU clock and USB 48MHz

.

Pre-programmed bootloader - USB and USART supported

.

LCD Driver

.

DMA Controller 12x channels

.

1x USB 2.0 internal 48MHz PLL

.

2 x Watchdog timers Independent and window

.

Serial wire debug, JTAG and trace
