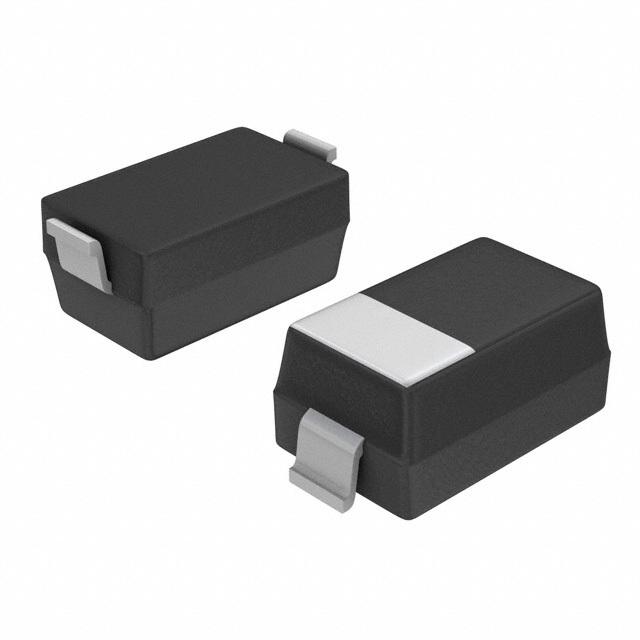

单管二极管 齐纳, 12 V, 500 mW, SOD-123, 5 %, 2 引脚, 150 °C
When your circuit requires a diode to act in the reverse-breakdown region use a voltage regulator zener diode from . Its maximum power dissipation is 500 mW. Its maximum leakage current is 1 μA. Its test current is 20 mA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener diode has an operating temperature range of -55 °C to 150 °C. This zener device has a nominal voltage of 12 V and a voltage tolerance of 5%.
容差 ±5 %
针脚数 2
正向电压 900mV @10mA
耗散功率 500 mW
测试电流 20 mA
稳压值 12 V
正向电压Max 900mV @10mA
额定功率Max 500 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
安装方式 Surface Mount
引脚数 2
封装 SOD-123
封装 SOD-123
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZMMSZ5242ET1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMSZ5242BT3G 安森美 | 完全替代 | SZMMSZ5242ET1G和MMSZ5242BT3G的区别 |
MMSZ5242ET1G 安森美 | 完全替代 | SZMMSZ5242ET1G和MMSZ5242ET1G的区别 |
MMSZ5242ET1 安森美 | 完全替代 | SZMMSZ5242ET1G和MMSZ5242ET1的区别 |
