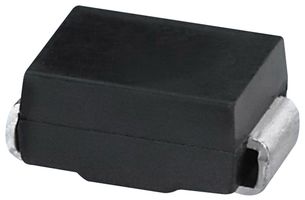

MICRO COMMERCIAL COMPONENTS SMAJ4746A-TP 齐纳二极管, 1W, 18V, DO-214AC
- 齐纳 ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 18V 1W DO214AC
立创商城:
18V ±5% 1W
e络盟:
齐纳二极管, 1W, 18V, DO-214AC
艾睿:
Check out this perfect SMAJ4746A-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its test current is 14 mA. Its maximum power dissipation is 1000@Ta=50C mW. Its maximum leakage current is 5 μA. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 18 V and a voltage tolerance of 5%.
Chip1Stop:
Diode Zener Single 18V 5% 1W 2-Pin SMA T/R
Verical:
Zener Diode Single 18V 5% 20Ohm 1000mW 2-Pin SMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SMAJ4746A-TP Zener Single Diode, 18 V, 1 W, DO-214AC, 5 %, 2 Pins, 150 °C
AMEYA360:
DIODE ZENER 18V 1W DO214AC
Win Source:
DIODE ZENER 18V 1W DO214AC
额定电压DC 18.0 V
容差 ±5 %
额定功率 1.00 W
针脚数 2
正向电压 1.2V @100mA
耗散功率 1 W
测试电流 14 mA
稳压值 18 V
正向电压Max 1.2V @100mA
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC

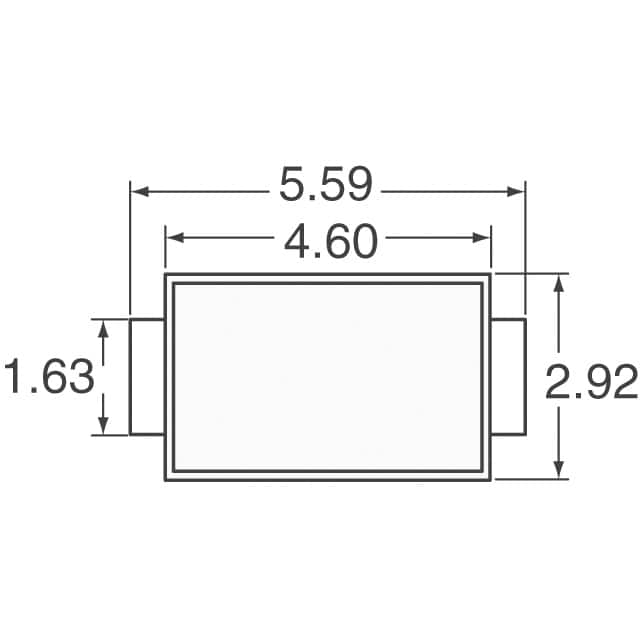

长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ4746A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAZ18-TP 美微科 | 类似代替 | SMAJ4746A-TP和SMAZ18-TP的区别 |
SML4746A-E3/61 威世 | 功能相似 | SMAJ4746A-TP和SML4746A-E3/61的区别 |
DL4746A-TP 美微科 | 功能相似 | SMAJ4746A-TP和DL4746A-TP的区别 |
