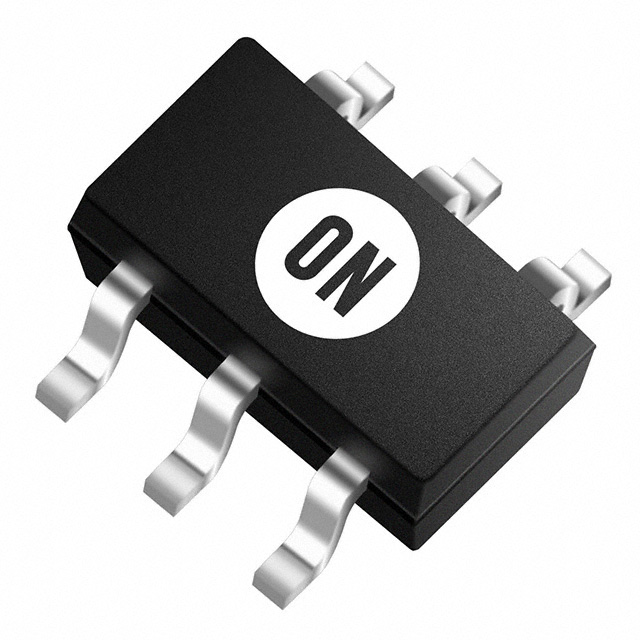

SC-88 NPN+PNP 50V 100mA
"s npn and PNP digital transistor is the ideal component to use in situations where digital signal processing is required. It has a maximum collector emitter voltage of 50 V. Its maximum power dissipation is 385 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This transistor has an operating temperature range of -55 °C to 150 °C. It is made in a dual configuration.
无卤素状态 Halogen Free
通道数 2
极性 NPN+PNP
耗散功率 0.385 W
击穿电压集电极-发射极 50 V
集电极最大允许电流 100mA
最小电流放大倍数hFE 35 @5mA, 10V
额定功率Max 187 mW
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 385 mW
安装方式 Surface Mount
引脚数 6
封装 SOT-363-6
封装 SOT-363-6
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMUN5311DW1T2G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
