稳压二极管 1.0W 30V
- 齐纳 30 V 1 W ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 30V 1W DO214AC
贸泽:
稳压二极管 1.0W 30V
艾睿:
Check out this perfect SMAJ4751A-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its maximum leakage current is 5 μA. Its test current is 8.5 mA. Its maximum power dissipation is 1000@Ta=50C mW. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This zener device has a nominal voltage of 30 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 30V 5% 1W 2-Pin SMA T/R
AMEYA360:
DIODE ZENER 30V 1W DO214AC
额定电压DC 30.0 V
容差 ±5 %
额定功率 1.00 W
正向电压 1.2V @100mA
耗散功率 1 W
测试电流 8.5 mA
稳压值 30 V
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2

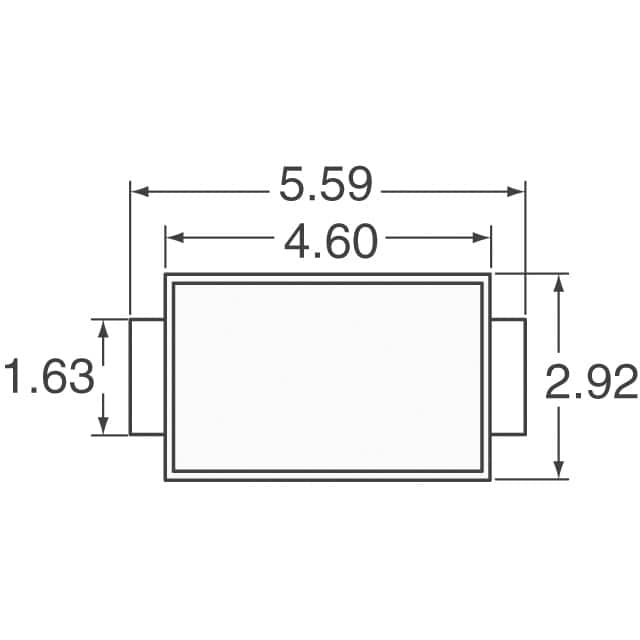

封装 DO-214AC-2
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ4751A-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAZ30-TP 美微科 | 类似代替 | SMAJ4751A-TP和SMAZ30-TP的区别 |
DL4751A-TP 美微科 | 功能相似 | SMAJ4751A-TP和DL4751A-TP的区别 |
SML4751A-E3/61 威世 | 功能相似 | SMAJ4751A-TP和SML4751A-E3/61的区别 |
