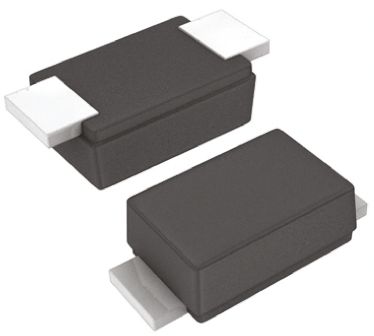

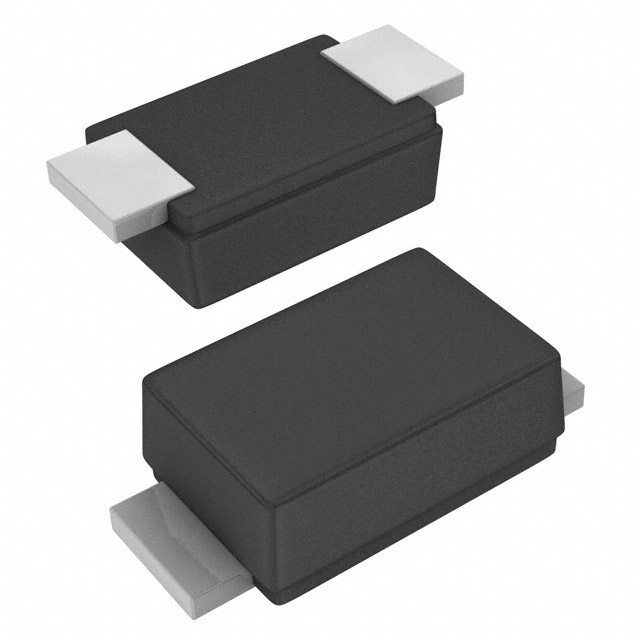

VISHAY S07B-GS08 标准恢复二极管, AEC-Q101, 单, 100 V, 700 mA, 1.1 V, 1.8 µs, 25 A
Features
• For surface mounted applications
• Low profile package
• Ideal for automated placement
• Glass passivated
• High temperature soldering: 260 °C/10 s at terminals
• Wave and reflow solderable
• AEC-Q101 qualified
• Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC
得捷:
DIODE STD REC 100V DO219AB
贸泽:
整流器 0.7 Amp 100 Volt 1.8uS
艾睿:
Diode Small Signal Switching 100V 1.5A Automotive 2-Pin DO-219AB T/R
Chip1Stop:
Diode Small Signal Switching 100V 1.5A 2-Pin DO-219AB T/R
Newark:
# VISHAY S07B-GS08 Standard Recovery Diode, Switching, 100 V, 1.5 A, Single, 1.1 V, 1.8 µs, 25 A
儒卓力:
**SI-DIODE 0,7A 100V SMF **
针脚数 2
正向电压 1.1V @1A
反向恢复时间 1.8 µs
正向电流 700 mA
最大正向浪涌电流(Ifsm) 25 A
正向电压Max 1.1 V
正向电流Max 1.5 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-219AB-2
长度 2.9 mm
宽度 1.8 mm
高度 1.08 mm
封装 DO-219AB-2
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 Automotive, 车用
RoHS标准 Non-Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
S07B-GS08 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
S07B-GS18 威世 | 类似代替 | S07B-GS08和S07B-GS18的区别 |
S07B 威世 | 功能相似 | S07B-GS08和S07B的区别 |
