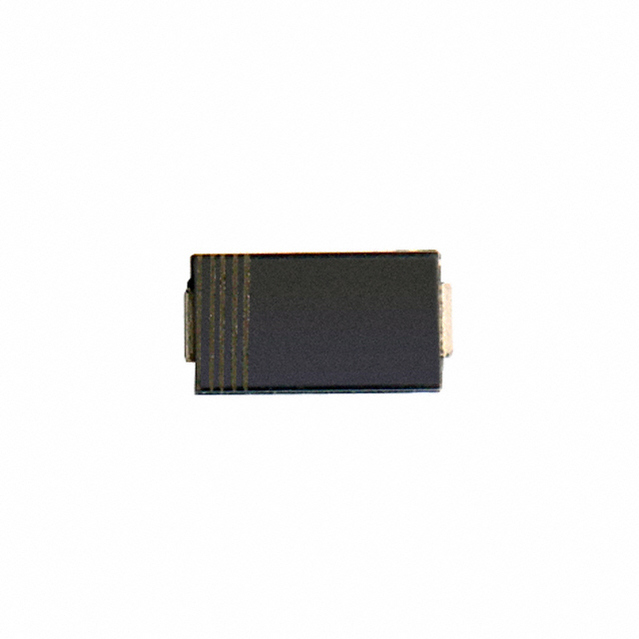

MICRO COMMERCIAL COMPONENTS SMAJ5920B-TP 齐纳二极管, 1.5W, 6.2V, DO-214AC
- 齐纳 ±5% 表面贴装型 DO-214AC(SMAJ)
立创商城:
SMAJ5920B-TP
得捷:
DIODE ZENER 6.2V 1.5W DO214AC
e络盟:
齐纳二极管, 1.5W, 6.2V, DO-214AC, 整卷
艾睿:
This SMAJ5920B-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 60.5 mA. Its maximum power dissipation is 1500 mW. Its maximum leakage current is 5 μA. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 6.2 V and a voltage tolerance of 5%. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 6.2V 5% 1.5W 2-Pin SMA T/R
Verical:
Zener Diode Single 6.2V 5% 2Ohm 1500mW 2-Pin SMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SMAJ5920B-TP Zener Single Diode, 6.2 V, 1.5 W, DO-214AC, 5 %, 2 Pins, 150 °C
额定电压DC 6.20 V
容差 ±5 %
额定功率 1.50 W
针脚数 2
正向电压 1.5V @200mA
耗散功率 1.5 W
测试电流 60.5 mA
稳压值 6.2 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 1500 mW
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC
工作温度 150 ℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
