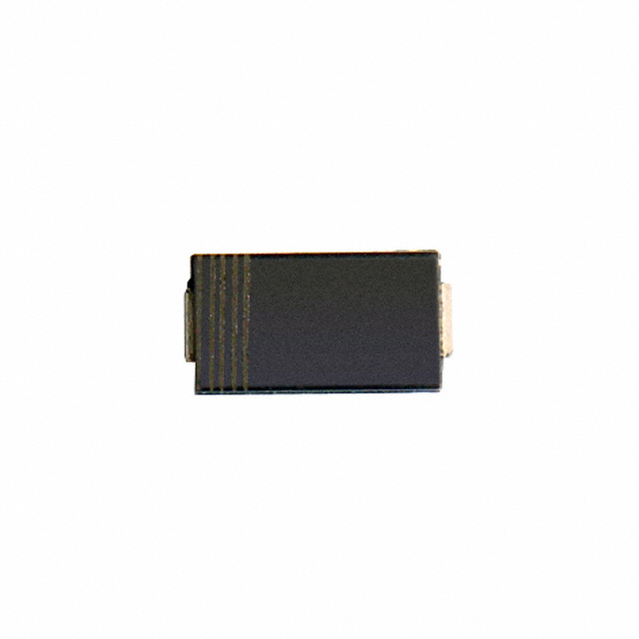

SMA 20V 1.5W
- 齐纳 20 V 1.5 W ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 20V 1.5W DO214AC
贸泽:
Zener Diodes 1.5W 20V
艾睿:
This SMAJ5932B-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its maximum leakage current is 1 μA. Its test current is 18.7 mA. Its maximum power dissipation is 1500 mW. This product will be shipped in tape and reel packaging so that components can be mounted effectively. This zener device has a nominal voltage of 20 V and a voltage tolerance of 5%. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 20V 5% 1.5W 2-Pin SMA T/R
AMEYA360:
DIODE ZENER 20V 1.5W DO214AC
额定电压DC 20.0 V
容差 ±5 %
额定功率 1.50 W
正向电压 1.5V @200mA
耗散功率 1.5 W
测试电流 18.7 mA
稳压值 20 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
