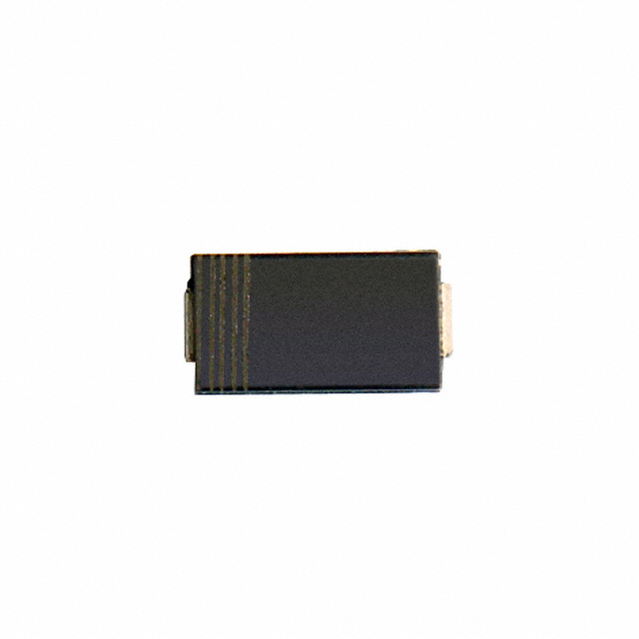

SMA 24V 1.5W
- 齐纳 ±5% 表面贴装型 DO-214AC(SMA)
立创商城:
24V ±5% 1.5W
得捷:
DIODE ZENER 24V 1.5W DO214AC
艾睿:
This SMAJ5934B-TP zener diode from Micro Commercial Components is perfect for your circuit requiring a diode to operate in the reverse-breakdown region. Its test current is 15.6 mA. Its maximum power dissipation is 1500 mW. Its maximum leakage current is 1 μA. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This zener device has a nominal voltage of 24 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 150 °C. It is made in a single configuration.
Chip1Stop:
Diode Zener Single 24V 5% 1.5W 2-Pin SMA T/R
额定电压DC 24.0 V
容差 ±5 %
额定功率 1.50 W
正向电压 1.5V @200mA
耗散功率 1.5 W
测试电流 15.6 mA
稳压值 24 V
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 150 ℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAJ5934B-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAJ5934B 美微科 | 功能相似 | SMAJ5934B-TP和SMAJ5934B的区别 |
