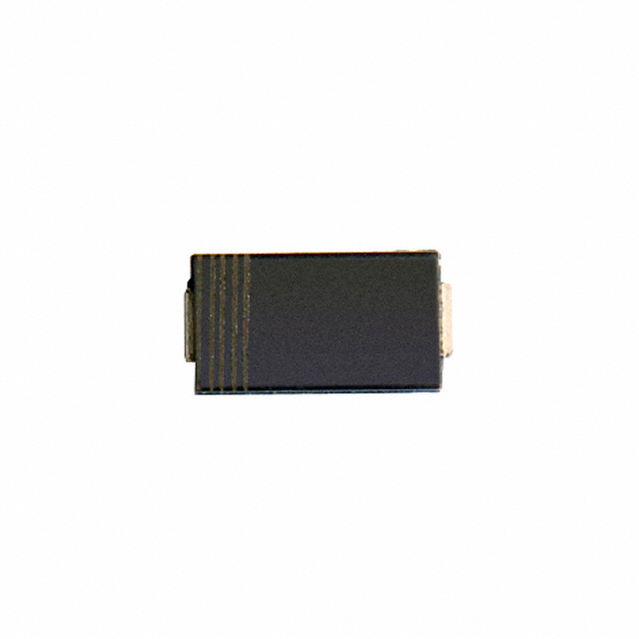

SMA 10V 1.5W
This zener diode from will allow you to run it in the reverse direction. Its maximum power dissipation is 1500 mW. Its maximum leakage current is 5 μA. Its test current is 37.5 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. This zener device has a nominal voltage of 10 V and a voltage tolerance of 5%.
额定电压DC 10.0 V
电容 500 pF
容差 ±5 %
额定功率 1.50 W
正向电压 1.5V @200mA
耗散功率 1.5 W
测试电流 37.5 mA
稳压值 10 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 1500 mW
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
封装 DO-214AC
工作温度 150 ℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
