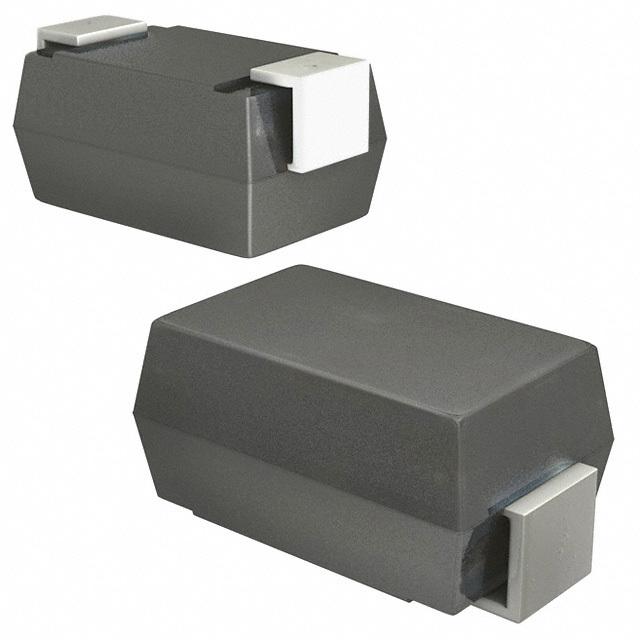

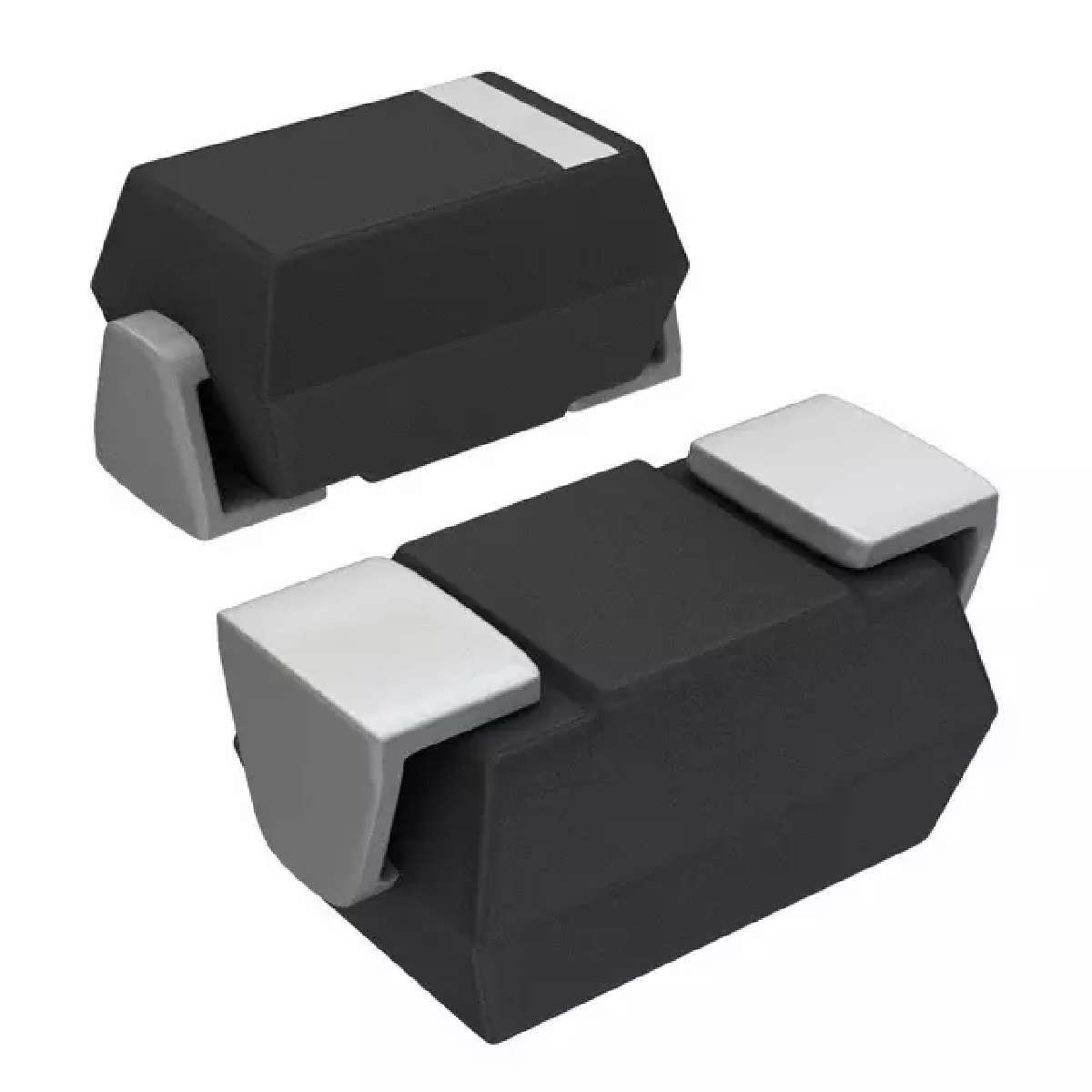

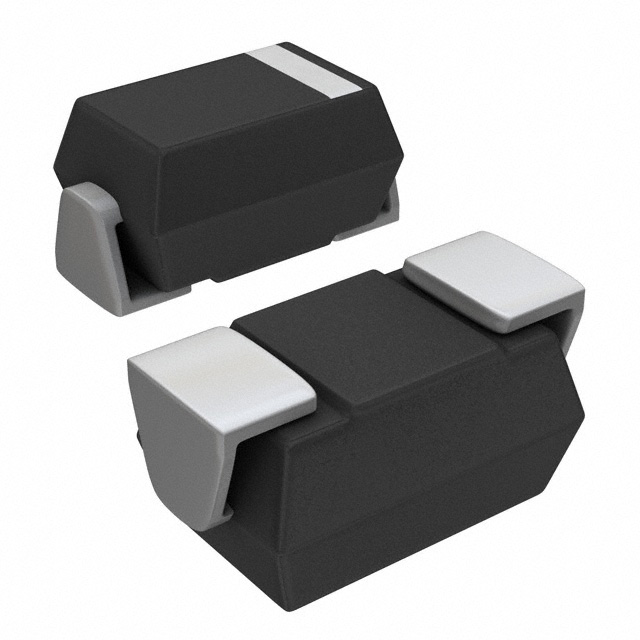

MICRO COMMERCIAL COMPONENTS SMAZ22-TP 齐纳二极管, 1W, 22V, DO-214AC
Features
• 1.0W Power Dissipation
• High Surge Capability
• Ideally Suited for Automatic Assembly
• Standard VZ Tolerance is +/- 5%
• Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
• Epoxy meets UL 94 V-0 flammability rating
• Moisture Sensitivity Level 1
• Halogen free available upon request by adding suffix "-HF"
得捷:
DIODE ZENER 22V 1W DO214AC
立创商城:
SMAZ22-TP
贸泽:
稳压二极管 22V 180Ohms
e络盟:
MICRO COMMERCIAL COMPONENTS SMAZ22-TP 齐纳二极管, 1W, 22V, DO-214AC
艾睿:
Check out this perfect SMAZ22-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its maximum leakage current is 0.5 μA. Its maximum power dissipation is 1000@Ta=50C mW. This device has a maximum regulator current of 45 mA. Its test current is 25 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This zener diode has a minimum operating temperature of -65 °C and a maximum of 150 °C. It is made in a single configuration. This zener device has a nominal voltage of 22 V and a voltage tolerance of 5%.
Chip1Stop:
Diode Zener Single 22V 5% 1W 2-Pin SMA T/R
Verical:
Zener Diode Single 22V 5% 15Ohm 1000mW 2-Pin SMA T/R
Newark:
# MICRO COMMERCIAL COMPONENTS SMAZ22-TP Zener Single Diode, 22 V, 1 W, DO-214AC, 5 %, 2 Pins, 150 °C
Win Source:
DIODE ZENER 22V 1W DO214AC
容差 ±5 %
针脚数 2
正向电压 1.2 V
耗散功率 1 W
测试电流 25 mA
稳压值 22 V
正向电压Max 1.2V @200mA
额定功率Max 1 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 1 W
安装方式 Surface Mount
引脚数 2
封装 DO-214AC-2
长度 4.6 mm
宽度 2.92 mm
高度 2.44 mm
封装 DO-214AC-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SMAZ22-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
SMAZ20-TP 美微科 | 类似代替 | SMAZ22-TP和SMAZ20-TP的区别 |
SMAZ22-13-F 美台 | 功能相似 | SMAZ22-TP和SMAZ22-13-F的区别 |
SMAJ4748A-TP 美微科 | 功能相似 | SMAZ22-TP和SMAJ4748A-TP的区别 |
