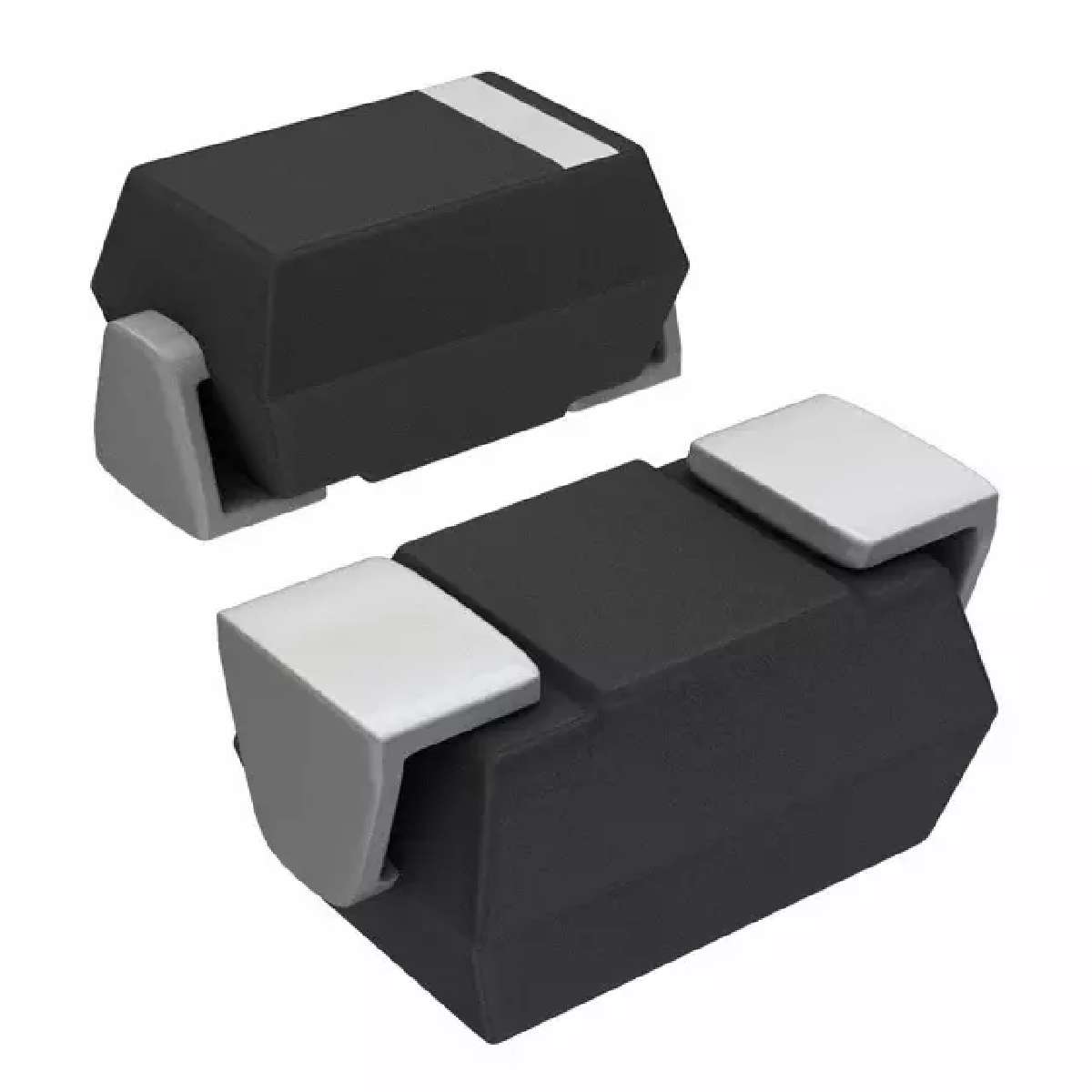

SMA 43V 1.5W
- 齐纳 43 V 1.5 W ±5% 表面贴装型 DO-214AC(SMA)
得捷:
DIODE ZENER 43V 1.5W DO214AC
艾睿:
Check out this perfect SMAJ5940B-TP zener diode from Micro Commercial Components for operating in the reverse breakdown region. Its maximum leakage current is 1 μA. Its maximum power dissipation is 1500 mW. Its test current is 8.7 mA. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This zener device has a nominal voltage of 43 V and a voltage tolerance of 5%. It is made in a single configuration. This zener diode has an operating temperature range of -65 °C to 150 °C.
Chip1Stop:
Diode Zener Single 43V 5% 1.5W 2-Pin SMA T/R
AMEYA360:
DIODE ZENER 43V 1.5W DO214AC
额定电压DC 43.0 V
容差 ±5 %
额定功率 1.50 W
正向电压 1.5V @200mA
耗散功率 1.5 W
测试电流 8.7 mA
稳压值 43 V
正向电压Max 1.5V @200mA
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.6 mm
宽度 2.9 mm
高度 2.44 mm
封装 DO-214AC
工作温度 150 ℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
