2A 至 3A,ON Semiconductor### 标准Products with NSV- or SUR-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.### 二极管和整流器,ON Semiconductor
整流器,2A 至 3A,
### 标准
带 NSV- 或 SUR- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
立创商城:
SURS8140T3G
得捷:
DIODE GEN PURP 400V 1A SMB
欧时:
### 整流器二极管,2A 至 3A,ON Semiconductor### 标准带 NSV- 或 SUR- 前缀的制造商部件号符合 AEC-Q101 汽车等级。### 二极管和整流器,ON Semiconductor
艾睿:
Converting from AC to DC is simple when using a switching diode SURS8140T3G rectifier from ON Semiconductor. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. It is made in a single configuration. Its peak non-repetitive surge current is 35 A, while its maximum continuous forward current is 2 A.
Allied Electronics:

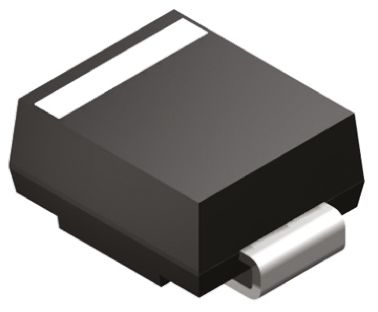

ON Semi SURS8140T3G, SMT Diode, 400V 2A, 75ns, 2-Pin DO-214AA
安富利:
Diode Ultra Fast Rectifier 400V 2A 2-Pin SMB T/R
Chip1Stop:
Diode Switching 400V 2A Automotive 2-Pin SMB T/R
Verical:
Rectifier Diode Switching 400V 1A 75ns Automotive 2-Pin SMB T/R
无卤素状态 Halogen Free
正向电压 1.25V @1A
反向恢复时间 75 ns
正向电流 2 A
最大正向浪涌电流(Ifsm) 35 A
正向电压Max 1.25 V
正向电流Max 2 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 SMB
长度 4.6 mm
宽度 3.95 mm
高度 2.27 mm
封装 SMB
工作温度 -40℃ ~ 95℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准
含铅标准 Lead Free
ECCN代码 EAR99
