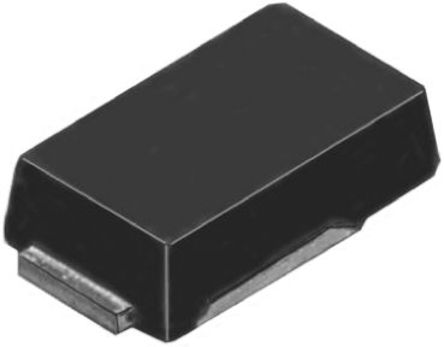

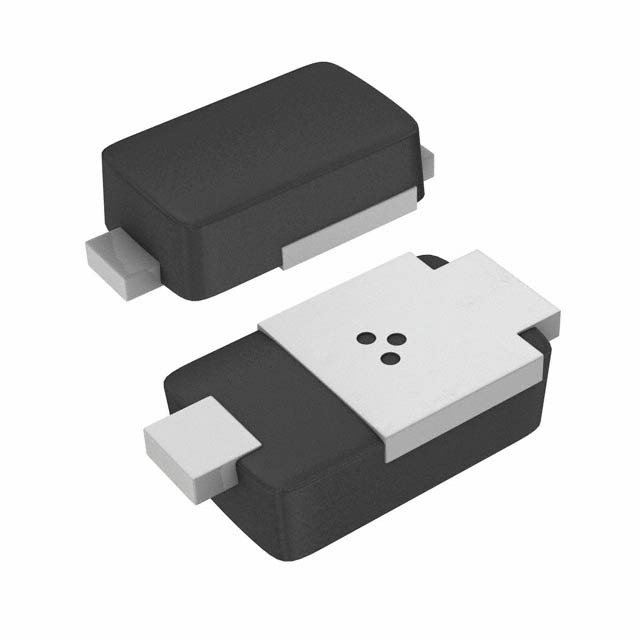

VISHAY SE15PJ-M3/84A 标准功率二极管, 单, 600 V, 1.5 A, 1.05 V, 900 ns, 30 A
The is a surface-mount ESD Capability Rectifier with matte tin-plated solderable leads. It is suitable for use in general-purpose, polarity protection and rail-to-rail protection.
负载电流 1.5 A
正向电压 1.05V @1.5A
反向恢复时间 900 ns
正向电流 1.5 A
最大正向浪涌电流(Ifsm) 30 A
正向电压Max 1.05 V
正向电流Max 1.5 A
工作温度Max 175 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-220AA-2
长度 3.61 mm
宽度 2.18 mm
高度 1.15 mm
封装 DO-220AA-2
工作温度 -55℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Consumer Electronics, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SE15PJ-M3/84A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SE15PJ-M3/85A 威世 | 功能相似 | SE15PJ-M3/84A和SE15PJ-M3/85A的区别 |
SE15PJHM3/84A 威世 | 功能相似 | SE15PJ-M3/84A和SE15PJHM3/84A的区别 |
SE15PJHM3/85A 威世 | 功能相似 | SE15PJ-M3/84A和SE15PJHM3/85A的区别 |
