ON SEMICONDUCTOR SCH1337-TL-W 晶体管, MOSFET, P沟道, -2 A, -30 V, 0.115 ohm, -10 V, -2.6 V
P 通道功率 MOSFET,30V 至 500V,
### MOSFET ,ON Semiconductor
得捷:
MOSFET P-CH 30V 2A SOT563/SCH6
欧时:
### P 通道功率 MOSFET,30V 至 500V,ON Semiconductor### MOSFET 晶体管,ON Semiconductor
e络盟:
功率场效应管, MOSFET, P沟道, 30 V, 2 A, 0.115 ohm, SOT-563, 表面安装
艾睿:
Do you require the advantages of traditional transistors coupled with the switching benefits of power MOSFETs? ON Semiconductor&s;s SCH1337-TL-W power MOSFET can provide a solution. This product comes packaged in bulk, so the parts will be stored loosely. This MOSFET transistor has an operating temperature range of -25 °C to 85 °C. This -20% to 80% channel MOSFET transistor operates in 0.22f mode. This device utilizes 10.5max technology.
安富利:
Trans MOSFET P-CH 30V 2A 6-Pin SOT-563 T/R
Verical:
Trans MOSFET P-CH Si 30V 2A 6-Pin SOT-563 T/R
Newark:
# ON SEMICONDUCTOR SCH1337-TL-W MOSFET Transistor, P Channel, -2 A, -30 V, 0.115 ohm, -10 V, -2.6 V
力源芯城:
-30V,-2A,单P沟道功率MOSFET
通道数 1
针脚数 6
漏源极电阻 0.115 Ω
极性 P-Channel
耗散功率 800 mW
阈值电压 2.6 V
漏源极电压Vds 30 V
上升时间 4.2 ns
输入电容Ciss 172pF @10VVds
下降时间 10.6 ns
工作温度Max 150 ℃
工作温度Min -55 ℃
耗散功率Max 800 mW
安装方式 Surface Mount
引脚数 6

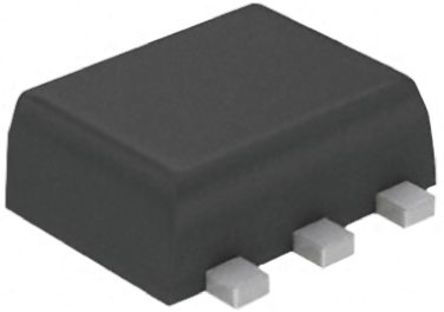

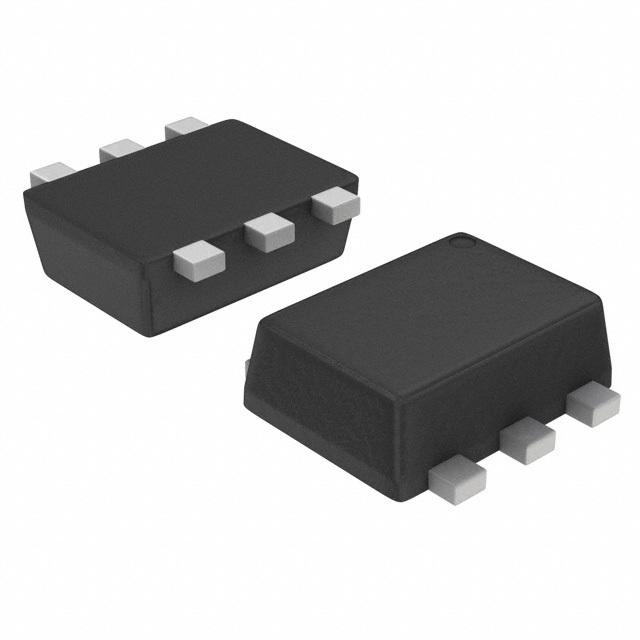

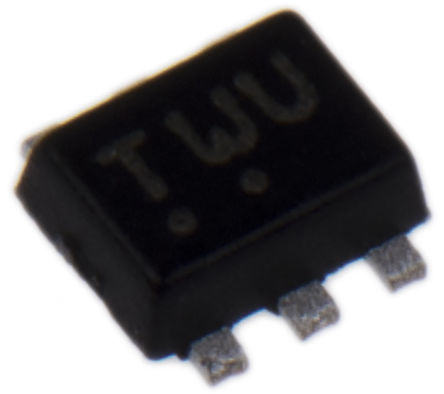

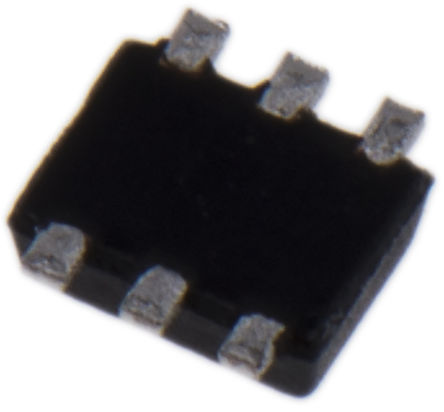

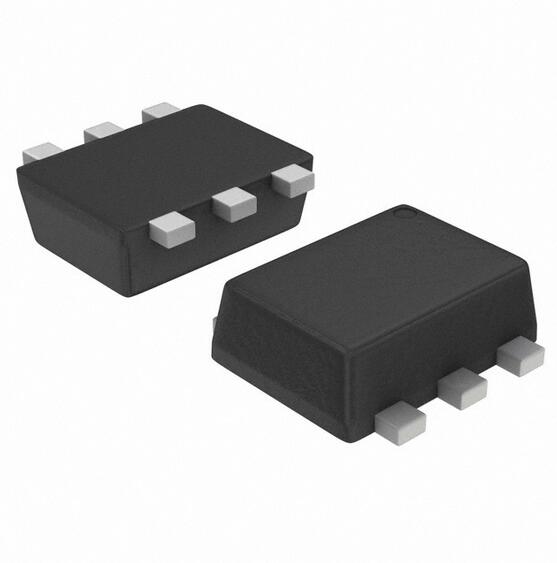

封装 SOT-563-6
长度 1.6 mm
宽度 1.5 mm
高度 0.56 mm
封装 SOT-563-6
材质 Silicon
工作温度 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
