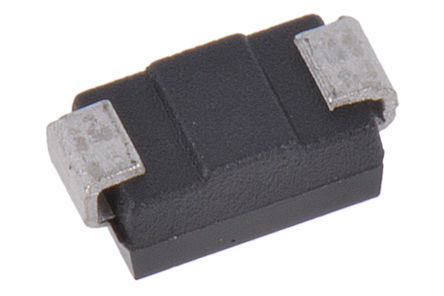

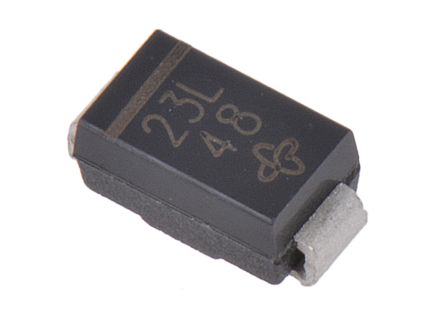

VISHAY SSA23L-E3/5AT 肖特基整流器, 单, 30 V, 2 A, DO-214AC, 2 引脚, 450 mV
The is a surface-mount high-current density Schottky Rectifier with solderable matte-tin plated terminals. It is suitable for use in low voltage high frequency inverters, free-wheeling, DC/DC converters and polarity protection applications.
针脚数 2
正向电压 450mV @2A
正向电流 2 A
最大正向浪涌电流(Ifsm) 60 A
正向电压Max 450 mV
正向电流Max 2 A
工作温度Max 150 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.5 mm
宽度 2.79 mm
高度 2.29 mm
封装 DO-214AC
工作温度 65℃ ~ 150℃
产品生命周期 Active
包装方式 Each
制造应用 Power Management, Automotive, Industrial, Commercial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SSA23L-E3/5AT Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SSA23L-E3/61T 威世 | 类似代替 | SSA23L-E3/5AT和SSA23L-E3/61T的区别 |
