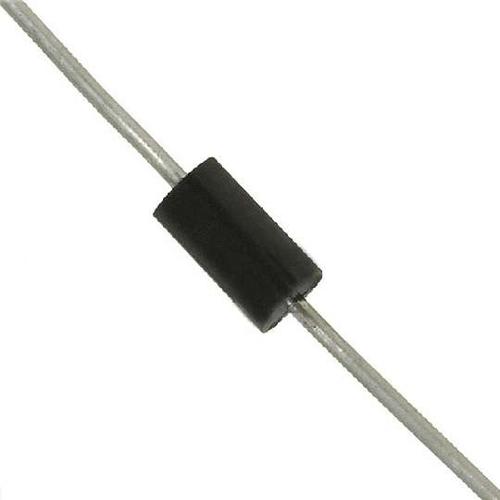

STTH3R02 系列 3 A 0.7 V 30 ns 超快恢复 二极管 通孔 - DO-15
标准 200 V 3A 通孔 DO-15
得捷:
DIODE GEN PURP 200V 3A DO15
立创商城:
200V 3A 24ns
艾睿:
Switch from an AC voltage to a DC voltage using a switching diode STTH3R02QRL rectifier from STMicroelectronics. This product will be shipped in tape and reel packaging to allow for quick mounting and safe delivery. Its peak non-repetitive surge current is 75 A, while its maximum continuous forward current is 3 A. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a single configuration.
安富利:
Diode Switching 200V 3A 2-Pin DO-15 T/R
富昌:
STTH3R02 Series 3 A 0.7 V 30 ns Ultrafast Recovery Diode Through Hole - DO-15
Chip1Stop:
Diode Switching 200V 3A 2-Pin DO-15 T/R
Verical:
Rectifier Diode Switching 200V 3A 30ns 2-Pin DO-15 T/R
Win Source:
DIODE GEN PURP 200V 3A DO15
额定电压DC 200 V
额定电流 3.00 A
输出电流 ≤3.00 A
正向电压 1V @3A
极性 Standard
热阻 45℃/W RθJL
反向恢复时间 30 ns
正向电流 3000 mA
正向电压Max 1V @3A
正向电流Max 3 A
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 2
封装 DO-204AC
封装 DO-204AC
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH3R02QRL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH3R02Q 意法半导体 | 类似代替 | STTH3R02QRL和STTH3R02Q的区别 |
EGP20D-E3/73 威世 | 功能相似 | STTH3R02QRL和EGP20D-E3/73的区别 |
UF2003-T 美台 | 功能相似 | STTH3R02QRL和UF2003-T的区别 |
