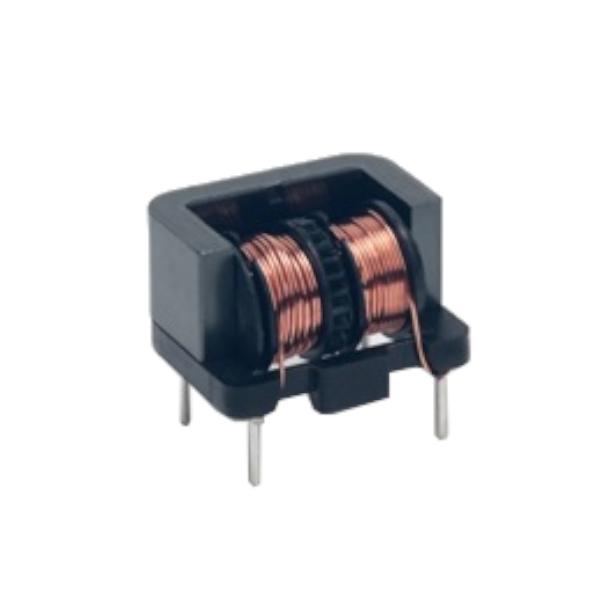

滤波器, 线性, 共模, 交流, 7.5 mH, SS28V-CH系列
The SS28V-CH series AC Line Filter suitable for consumer electronics and common mode choke applications.
- .
- Wide variety of sizes and specifications
- .
- Inductances up to 60mH
- .
- Rated currents up to 2.5A
- .
- DC Resistances as low as 0.16R
Avoid storage in high temperature, high humidity environment, atmosphere containing toxic gases or acid and near strong magnetic field.
Use within 6 months. If the product is used after a storage period of 6 months or longer, confirm its solderability before use.
额定电压AC 250 V
额定电流 2.5 A
电感 7.5 mH
测试频率 1 kHz
电阻DC） 160 mΩ
额定电流Max 2.5 A
工作温度Max 120 ℃
工作温度Min -25 ℃
额定电压 250 VAC
电阻DC Max 160 mΩ
安装方式 Through Hole
引脚数 4
封装 Vertical, 4 PC Pin
长度 30 mm
宽度 22 mm
高度 35.5 mm
封装 Vertical, 4 PC Pin
工作温度 -25℃ ~ 120℃
产品生命周期 Active
包装方式 Bulk
制造应用 工业, Consumer Electronics, Industrial, 消费电子产品
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
