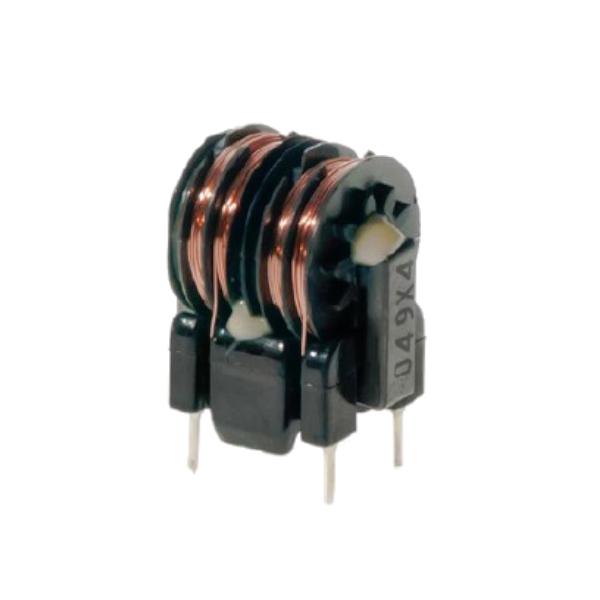

滤波器, 线性, 共模, 交流, 22 mH, 600 mA, SS21V系列
The SS21V series AC Line Filter suitable for consumer electronics and common mode choke applications.
- .
- Wide variety of sizes and specifications
- .
- Inductances up to 138mH
- .
- Rated currents up to 3A
- .
- DC Resistances as low as 0.07R
- .
- High inductance in a compact design
Avoid storage in high temperature, high humidity environment, atmosphere containing toxic gases or acid and near strong magnetic field.
Use within 6 months. If the product is used after a storage period of 6 months or longer, confirm its solderability before use.
额定电压AC 250 V
额定电流 600 mA
电感 22 mH
测试频率 1 kHz
电阻DC） 1.5 Ω
额定电流Max 600 mA
工作温度Max 120 ℃
工作温度Min -25 ℃
额定电压 250 VAC
电阻DC Max 1.5 Ω
安装方式 Through Hole
引脚数 4
封装 Vertical, 4 PC Pin
长度 20.6 mm
宽度 16.5 mm
高度 25.5 mm
封装 Vertical, 4 PC Pin
工作温度 -25℃ ~ 120℃
产品生命周期 Active
制造应用 工业, 消费电子产品, Consumer Electronics, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
