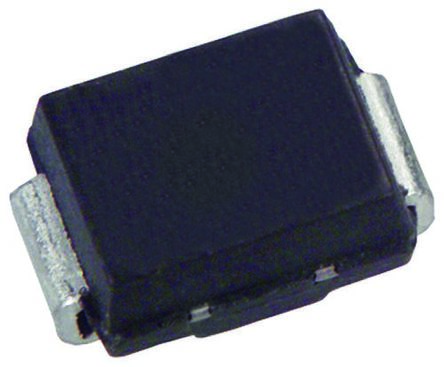

VISHAY SL22-E3/52T 肖特基整流器, 单, 20 V, 2 A, DO-214AA, 2 引脚, 440 mV
The is a surface-mount Schottky Barrier Rectifier with solderable matte tin-plated terminals. It is suitable for use in low-voltage high-frequency inverters, free-wheeling, DC/DC converters and polarity protection applications.
额定电压DC 20.0 V
额定电流 2.00 A
输出电流 ≤2.00 A
针脚数 2
正向电压 440mV @2A
极性 Standard
正向电流 2 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 440 mV
正向电流Max 2 A
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.7 mm
宽度 3.8 mm
高度 2.24 mm
封装 DO-214AA
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Commercial, Industrial, Power Management, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SL22-E3/52T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SL23-E3/5BT 威世 | 完全替代 | SL22-E3/52T和SL23-E3/5BT的区别 |
SL23-E3/52T 威世 | 类似代替 | SL22-E3/52T和SL23-E3/52T的区别 |
SL22-E3/5BT 威世 | 类似代替 | SL22-E3/52T和SL22-E3/5BT的区别 |
