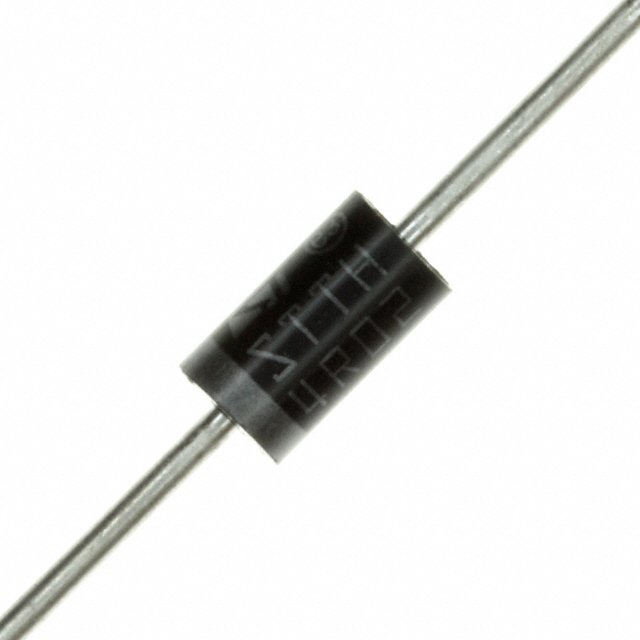

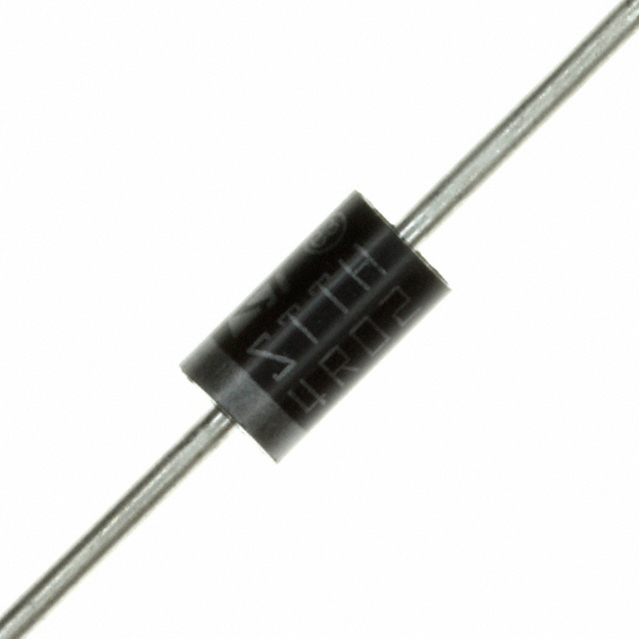

高压超快整流器 High voltage ultrafast rectifier
Diode Standard 1000V 3A Through Hole DO-201AD
得捷:
DIODE GEN PURP 1KV 3A DO201AD
立创商城:
1000V 3A高效超快二极管
贸泽:
Rectifiers 3.0 Amp 1000 Volt
e络盟:
快速/超快二极管, 1 kV, 3 A, 单, 1.7 V, 75 ns, 55 A
艾睿:
Converting from AC to DC is simple when using a switching diode STTH310RL rectifier from STMicroelectronics. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. This rectifier has a minimum operating temperature of -40 °C and a maximum of 175 °C. Its peak non-repetitive surge current is 55 A, while its maximum continuous forward current is 3 A.
安富利:
Diode Switching 1KV 3A 2-Pin DO-201AD T/R
Chip1Stop:
Diode Switching 1KV 3A 2-Pin DO-201AD T/R
Verical:
Rectifier Diode Switching 1KV 3A 75ns 2-Pin DO-201AD T/R
额定电压DC 1.00 kV
额定电流 3.00 A
输出电流 ≤3.00 A
正向电压 1.7V @3A
极性 Standard
热阻 75℃/W RθJA
反向恢复时间 75 ns
正向电流 3 A
最大正向浪涌电流(Ifsm) 55 A
正向电压Max 1.7V @3A
正向电流Max 3000 mA
工作温度Max 175 ℃
工作温度Min 40 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
工作温度 -40℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH310RL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH310 意法半导体 | 类似代替 | STTH310RL和STTH310的区别 |
MUR4100ERLG 安森美 | 功能相似 | STTH310RL和MUR4100ERLG的区别 |
MUR4100EG 安森美 | 功能相似 | STTH310RL和MUR4100EG的区别 |
