STR912FAZ46H6

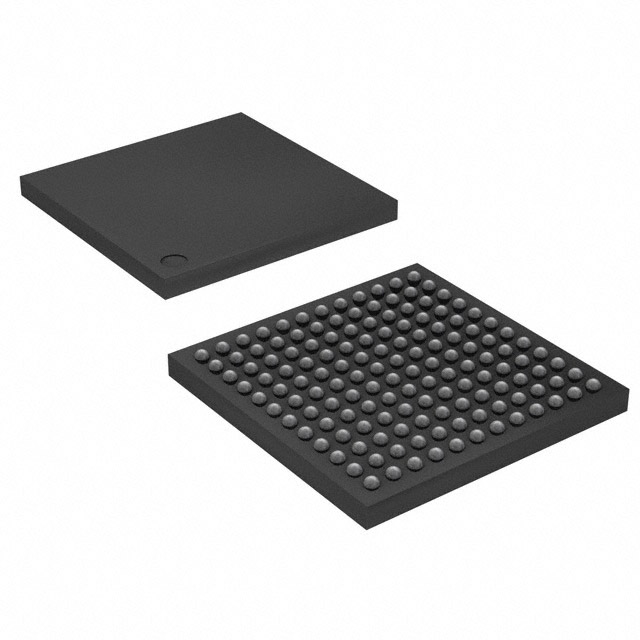

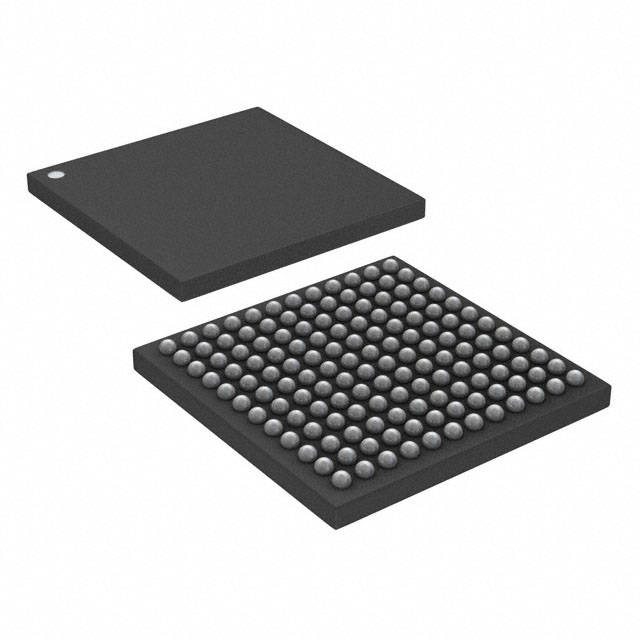

STMICROELECTRONICS  STR912FAZ46H6  微控制器, 32位, STR9系列, ARM9, 96 MHz, 1.125 MB, 96 KB, 144 引脚, LFBGA

STR91xFA is a series of ARM®-powered microcontrollers which combines a 16/32-bit ARM966E-S RISC processor core, dual-bank Flash memory, large SRAM for data or code, and a rich peripheral set to form an ideal embedded controller for a wide variety of applications such as point-of-sale terminals, industrial automation, security and surveillance, vending machines, communication gateways, serial protocol conversion, and medical equipment. The ARM966E-S core can perform single-cycle DSP instructions, good for speech processing, audio algorithms, and low-end imaging.

**Key Features**

.

16/32-bit 96 MHz ARM9E based MCU

.

ARM966E-S™ RISC core: Harvard archi-tecture, 5-stage pipeline, Tightly-Coupled Memories SRAM and Flash

.

STR91xFA implementation of core adds high-speed burst Flash memory interface, instruction prefetch queue, branch cache

.

Up to 96 MIPS directly from Flash memory

.

Single-cycle DSP instructions supported

.

Binary compatible with ARM7 code

.

Dual burst Flash memories, 32-bits wide

.

256 KB/512 KB/1 MB/2 MB main Flash

.

32 KB/128 KB secondary Flash

.

Sequential Burst operation up to 96 MHz

.

100 K min erase cycles, 20 yr min retention

.

SRAM, 32-bits wide

.

64K or 96K bytes, optional battery backup

.

9 programmable DMA channels

.

Clock, reset, and supply management

.

Internal oscillator operating with external 4-25 MHz crystal

.

Internal PLL up to 96 MHz

.

Real-time clock provides calendar functions, tamper, and wake-up functions

.

Reset Supervisor monitors supply voltage, watchdog, wake-up unit, external reset

.

Brown-out monitor

.

Run, Idle, and Sleep Mode as low as 50 uA

.

Vectored interrupt controller VIC

.

32 IRQ vectors, 30 interrupt pins

.

Branch cache minimizes interrupt latency

.

8-channel, 10-bit A/D converter ADC

.

0 to 3.6 V range, 0.7 usec conversion

.

10 Communication interfaces

.

10/100 Ethernet MAC with DMA and MII

.

USB Full-speed 12 Mbps slave device

.

CAN interface 2.0B Active

.

3 16550-style UARTs with IrDA protocol

.

2 Fast I2C, 400 kHz

.

2 channels for SPI, SSI™, or MICROWIRE™

.

External Memory Interface EMI

.

8- or 16-bit data, up to 24-bit addressing

.

Static Async modes for LQFP128

.

Additional burst synchronous modes for LFBGA144

.

Up to 80 I/O pins muxed with interfaces

.

16-bit standard timers TIM

.

4 timers each with 2 input capture, 2 output compare, PWM and pulse count modes

.

3-Phase induction motor controller IMC

.

JTAG interface with boundary scan

.

Embedded trace module ARM® ETM9™
