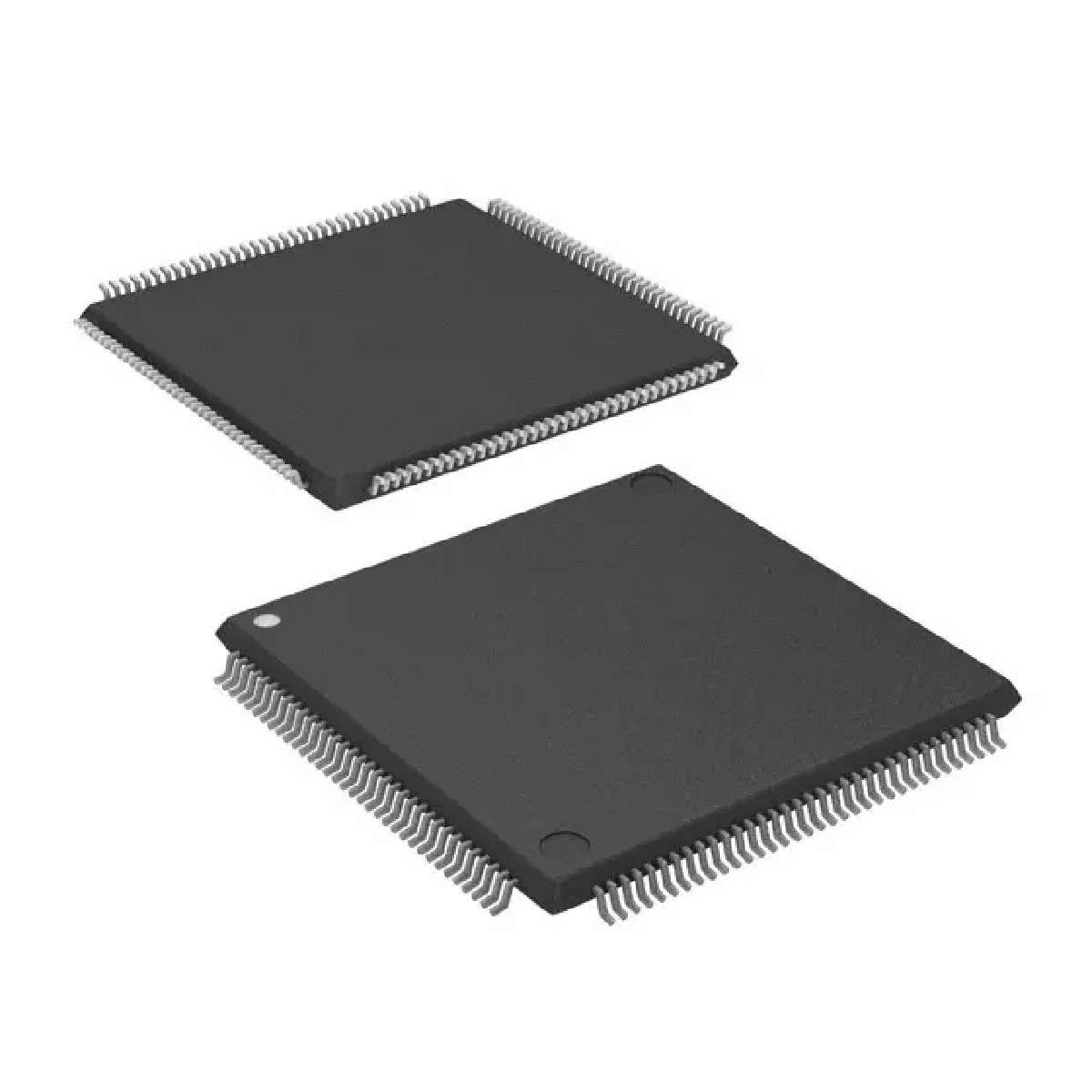

MCU 16Bit ST10 CISC/RISC 832KB Flash 5V 144Pin PQFP T/R
The architecture of the ST10F276E combines advantages of both RISC and CISC processors and an advanced peripheral subsystem. The block diagram gives an overview of the different on-chip components and the high bandwidth internal bus structure of the ST10F276E.
**Key Features**
-
.
-
Highly performance 16-bit CPU with DSP functions
-
.
-
31.25ns instruction cycle time at 64MHz max CPU clock
-
.
-
Multiply/accumulate unit MAC 16 x 16-bit multiplication, 40-bit accumulator
-
.
-
Enhanced boolean bit manipulations
-
.
-
Single-cycle context switching support
-
.
-
On-chip memories
-
.
-
512 Kbyte Flash memory 32-bit fetch
-
.
-
320 Kbyte extension Flash memory 16-bit fetch
-
.
-
Single voltage Flash memories with erase/program controller and 100K erasing/programming cycles
-
.
-
Up to 16 Mbyte linear address space for code and data 5 Mbytes with CAN or I2C
-
.
-
2 Kbyte internal RAM IRAM
-
.
-
66 Kbyte extension RAM XRAM
-
.
-
External bus
-
.
-
Programmable external bus configuration & characteristics for different address ranges
-
.
-
5 programmable chip-select signals
-
.
-
Hold-acknowledge bus arbitration support
-
.
-
Interrupt
-
.
-
8-channel peripheral event controller for single cycle interrupt driven data transfer
-
.
-
16-priority-level interrupt system with 56 sources, sampling rate down to 15.6ns
-
.
-
Timers
-
.
-
2 multi-functional general purpose timer units with 5 timers
-
.
-
Two 16-channel capture / compare units
-
.
-
4-channel PWM unit + 4-channel XPWM
-
.
-
A/D converter
-
.
-
24-channel 10-bit
-
.
-
3 μs minimum conversion time
-
.
-
Serial channels
-
.
-
2 synch. / asynch. serial channels
-
.
-
2 high-speed synchronous channels
-
.
-
1 I2C standard interface
-
.
-
2 CAN 2.0B interfaces operating on 1 or 2 CAN busses 64 or 2x32 message, C-CAN version
-
.
-
Fail-safe protection
-
.
-
Programmable watchdog timer
-
.
-
Oscillator watchdog
-
.
-
On-chip bootstrap loader
-
.
-
Clock generation
-
.
-
On-chip PLL with 4 to 12 MHz oscillator
-
.
-
Direct or prescaled clock input
-
.
-
Real-time clock and 32 kHz on-chip oscillator
-
.
-
Up to 111 general purpose I/O lines
-
.
-
Individually programmable as input, output or special function
-
.
-
Programmable threshold hysteresis
-
.
-
Idle, power down and stand-by modes
-
.
-
Single voltage supply: 5V ±10% embedded regulator for 1.8 V core supply
