1A 至 3A,STMicroelectronics### 二极管和整流器,STMicroelectronics
整流器,1A 至 3A,STMicroelectronics
得捷:
DIODE GEN PURP 1.2KV 1A DO41
欧时:

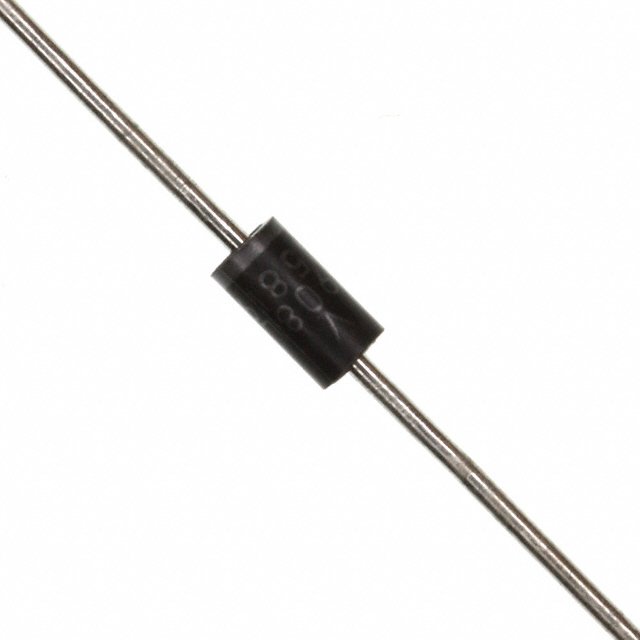

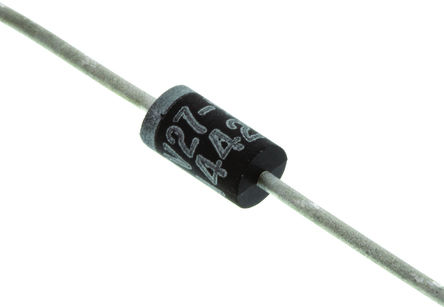

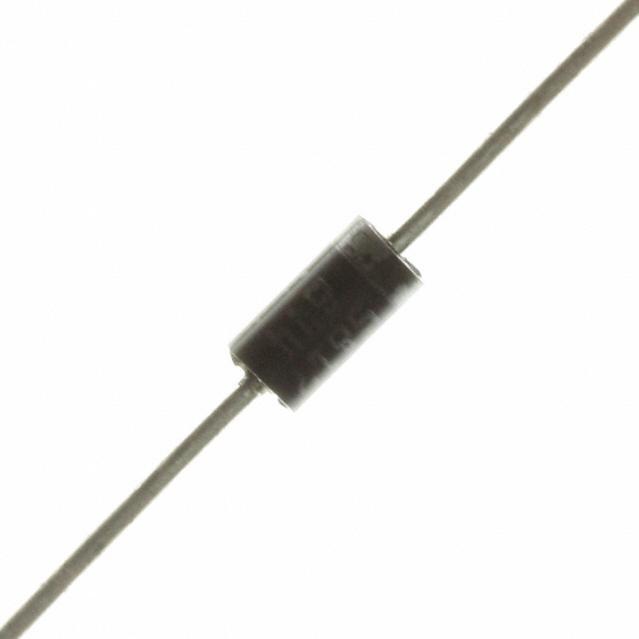

STMicroelectronics 二极管 STTH112RL, Io=1A, Vrev=1200V, 75ns, 2引脚 DO-41封装
立创商城:
1.2kV 1A 75ns
艾睿:
Converting from AC to DC is simple when using a switching diode STTH112RL rectifier from STMicroelectronics. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. Its peak non-repetitive surge current is 20 A, while its maximum continuous forward current is 1 A. It is made in a single configuration. This rectifier has an operating temperature range of -50 °C to 175 °C.
安富利:
Diode Switching 1.2KV 1A 2-Pin DO-41 T/R
富昌:
STTH112 系列 1200 V 1 A 75 ns 通孔 Ultrafast 整流器 - DO-41
Chip1Stop:
Diode Switching 1.2KV 1A 2-Pin DO-41 T/R
Verical:
Rectifier Diode Switching 1.2KV 1A 75ns 2-Pin DO-41 T/R
儒卓力:
**TURBOSWITCH-DIODE 1200V 1A DO41 **
额定电压DC 1.20 kV
额定电流 1.00 A
输出电流 ≤1.00 A
正向电压 1.9V @1A
极性 Standard
热阻 110 ℃/W
反向恢复时间 75 ns
正向电流 1000 mA
最大正向浪涌电流(Ifsm) 20 A
正向电流Max 1 A
工作温度Max 175 ℃
工作温度Min -50 ℃
工作结温 175℃ Max
安装方式 Through Hole
引脚数 2
封装 DO-41
长度 5.2 mm
封装 DO-41
工作温度 -50℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
STTH112RL ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
STTH112 意法半导体 | 类似代替 | STTH112RL和STTH112的区别 |
