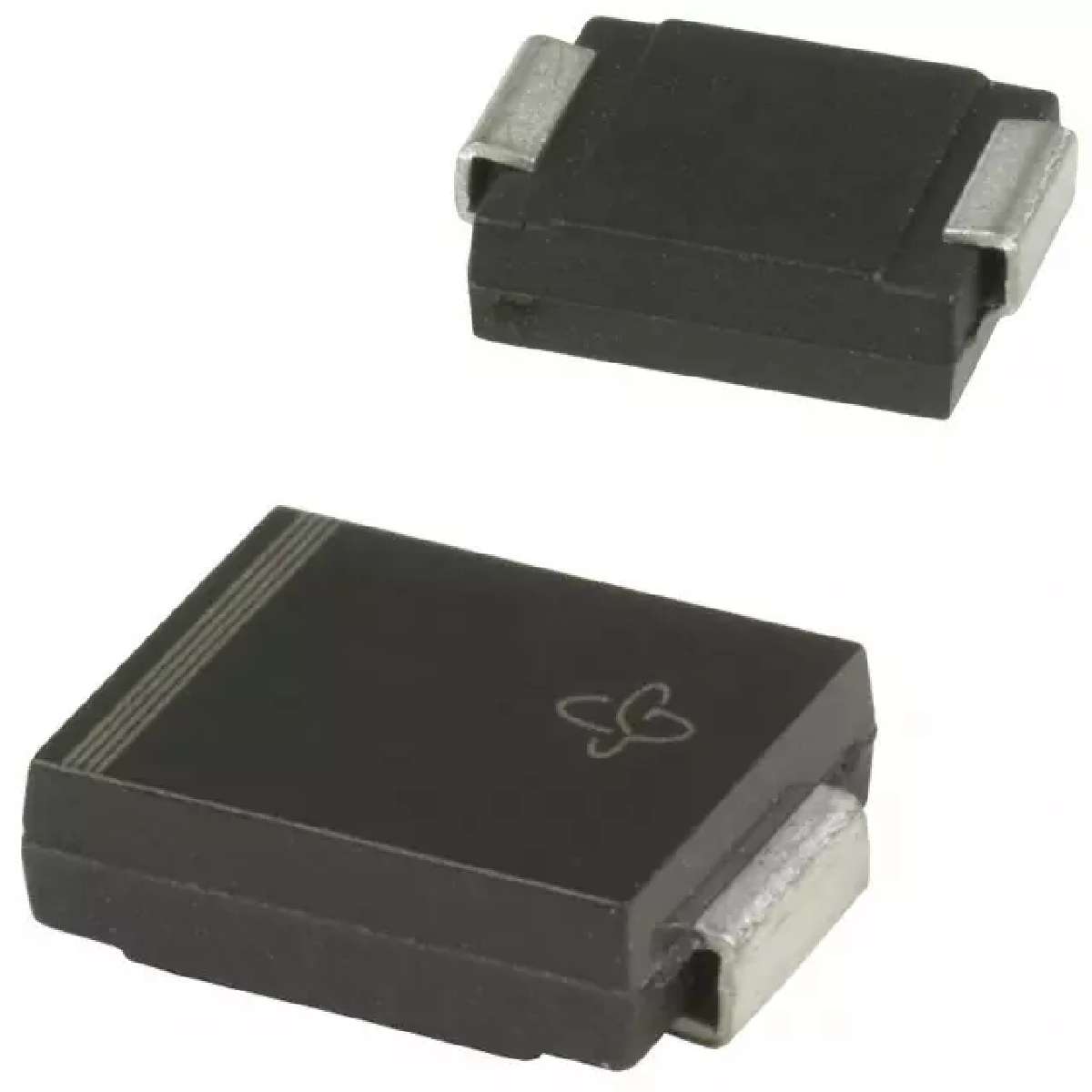

VISHAY S5K-E3/57T. 标准功率二极管, 单, 800 V, 5 A, 1.15 V, 2.5 µs, 100 A
The is a surface-mount Glass-passivated Rectifier with matte tin-plated solderable leads. It is suitable for use in general-purpose rectification of power supplies, inverters, converters and freewheeling diodes.
额定电压DC 800 V
额定电流 5.00 A
电容 40.0 pF
输出电流 ≤5.00 A
正向电压 1.15V @5A
极性 Standard
反向恢复时间 2.5 µs
正向电流 5 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 1.15 V
工作温度Max 150 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AB
封装 DO-214AB
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, Consumer Electronics, Industrial, Automotive
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
S5K-E3/57T Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
S5K-E3/9AT 威世 | 功能相似 | S5K-E3/57T和S5K-E3/9AT的区别 |
