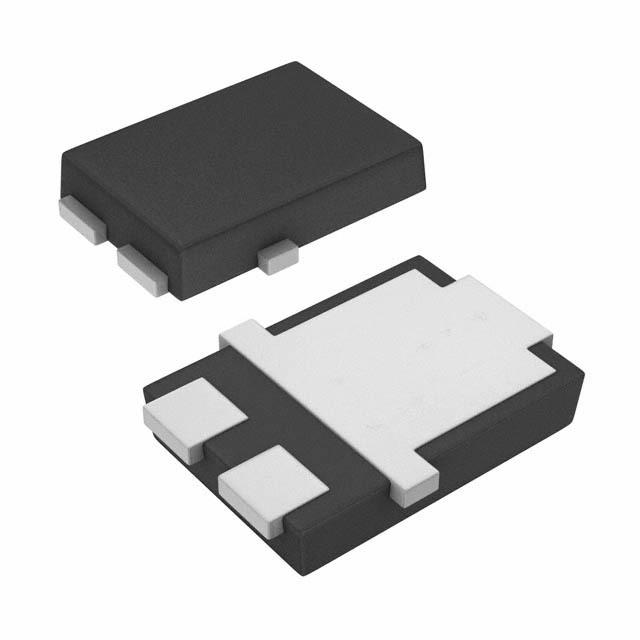

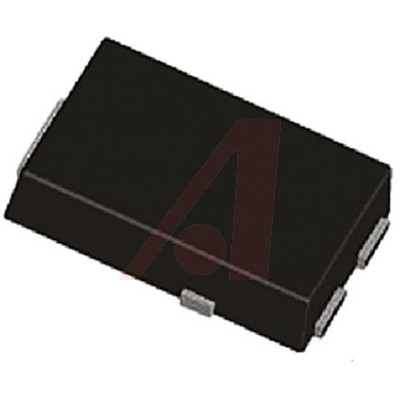

VISHAY SS5P4-M3/86A 肖特基整流器, 单, 40 V, 5 A, TO-277A, 3 引脚, 520 mV
**Features:
**
* Very Low Profile — Typical Height of 1.1 mm
* Ideal for Automated Placement
* Guardring for Overvoltage Protection
* Low Forward Voltage Drop, Low Power Losses
* High Efficiency
* Low Thermal Resistance
* Meets MSL level 1, per J-STD-020, LF M Maximum Peak of 260°C
* Solder Dip 265°C max. 10 s, Per JESD 22-A111
* Compliant to RoHS Directive 2002/95/EC and in Accordance to WEEE 2002/96/EC
* Halogen-Free According to IEC 61249-2-21 Definition
**Applications:
**For use in high frequency rectifier of switching mode power supplies, freewheeling diodes, DC-to-DC converters and polarity protection application.
针脚数 3
正向电压 0.45 V
正向电流 5 A
最大正向浪涌电流(Ifsm) 150 A
正向电压Max 520 mV
正向电流Max 5 A
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
工作结温Max 150 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-277
长度 6.15 mm
宽度 6.15 mm
高度 1.2 mm
封装 TO-277
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Commercial, Industrial, Automotive, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SS5P4-M3/86A Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SS5P4HM3/87A 威世 | 类似代替 | SS5P4-M3/86A和SS5P4HM3/87A的区别 |
SS5P4HM3/86A 威世 | 功能相似 | SS5P4-M3/86A和SS5P4HM3/86A的区别 |
SS5P4-M3/87A 威世 | 功能相似 | SS5P4-M3/86A和SS5P4-M3/87A的区别 |
