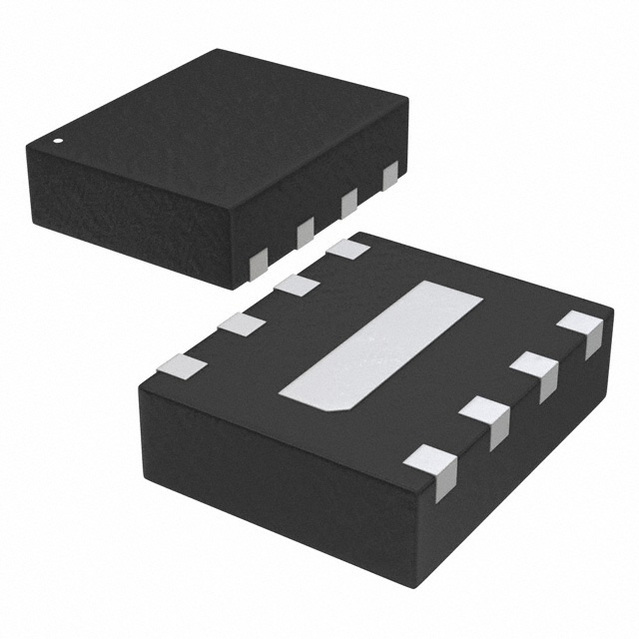

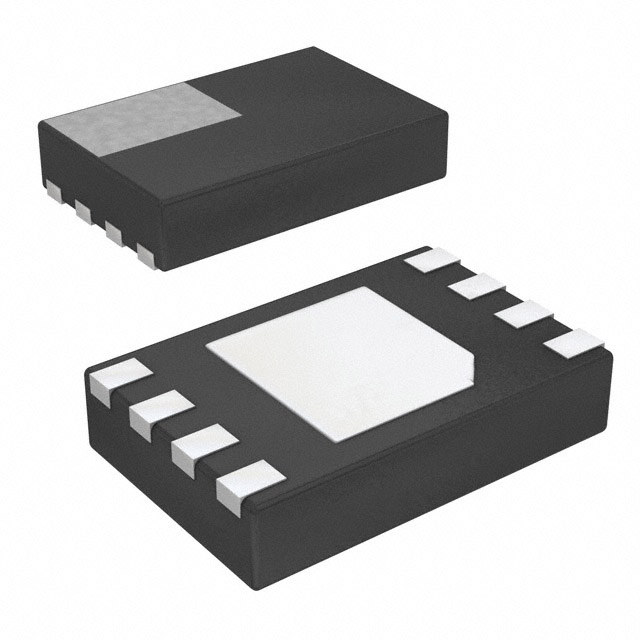

LITTELFUSE SP6001-04UTG-1 滤波器阵列, EMI, 8-uDFN, 7V 至 8.5V
Description
The SP6001 SPA series integrates 4, 6 and 8 EMI filters C-R-C into a small, low-profile UDFN package with each filter providing greater than -30dB attenuation at 1GHz. Additionally, each I/O is capable of shunting ±30kV ESD strikes IEC61000-4-2, contact discharge away from sensitive electronic components. The performance of this small, slim design makes it extremely suitable for mobile handsets, PDAs and notebook computers.
Features
• EMI filtering of frequencies from 800MHz to 3GHz
• Greater than -30dB attenuation TYP at 1GHz
• ESD, IEC61000-4-2, ±30kV contact, ±30kV air
• Small, low-profile UDFN package TYP 0.5mm height
Applications
• Keypad interface for portable electronics
• LCD and camera display interfaces for handsets
• Connector interfaces for portable electronics
• Mobile phone
• Smartphone
• Portable navigation device
