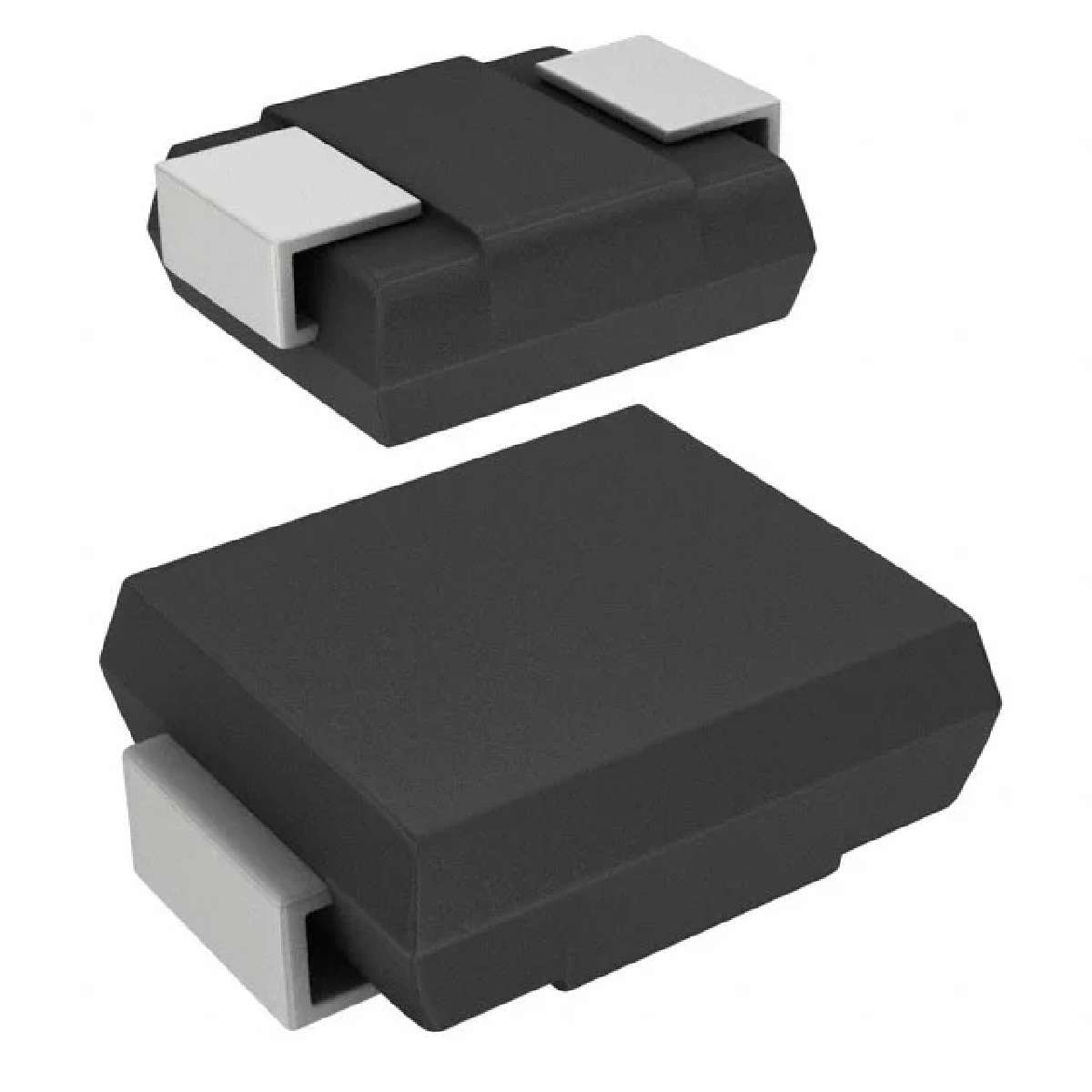

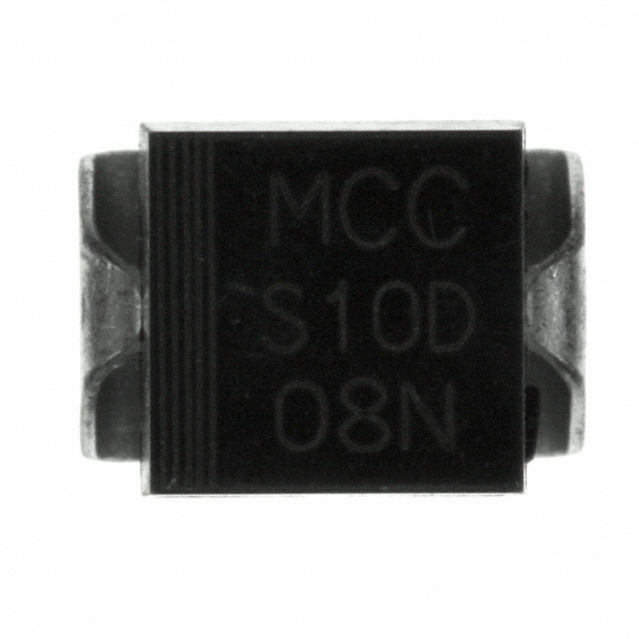

S10D-TP

整流器 10A, 200V

10 Amp Silicon Rectifier 50 to 1000 Volts

Features

Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information

Low Thermal Resistance

High Temp Soldering: 260oC for 10 Seconds At Terminals

Maximum Thermal Resistance:10C/W Junction To Case

Epoxy meets UL 94 V-0 flammability rating

Moisture Sensitivity Level 1

Halogen free available upon request by adding suffix "-HF"

立创商城:
200V 10A 1.2V@10A

得捷:
DIODE GEN PURP 200V 10A DO214AB

贸泽:
整流器 10A, 200V

艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode S10D-TP rectifier from Micro Commercial Components. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This rectifier has an operating temperature range of -55 °C to 150 °C. Its peak non-repetitive surge current is 200 A, while its maximum continuous forward current is 10 A. It is made in a single configuration.

Chip1Stop:
Diode Switching 200V 10A 2-Pin SMC T/R

Verical:
Rectifier Diode Switching 200V 10A 2-Pin SMC T/R

Win Source:
DIODE GEN PURP 200V 10A DO214AB
