1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,ON Semiconductor### Zener Diodes, ON Semiconductor
齐纳 1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,
### Zener Diodes, ON Semiconductor
得捷:
DIODE ZENER 6.8V 1.5W SMA
立创商城:
SZ1SMA5921BT3G
欧时:
### 齐纳二极管 1.5W,1SMA59xxBT,SZ1SMA59xxBT 系列,ON Semiconductor### Zener Diodes, ON Semiconductor
贸泽:
Zener Diodes ZEN SMA REG 1.5W 6.8V TR
艾睿:
Access the reverse breakdown region using a voltage regulator SZ1SMA5921BT3G zener diode from ON Semiconductor. Its test current is 55.1 mA. This device has a maximum regulator current of 221 mA. Its maximum power dissipation is 1500 mW. Its maximum leakage current is 2.5 μA. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It is made in a single configuration. This zener device has a nominal voltage of 6.8 V and a voltage tolerance of 5%. This zener diode has an operating temperature range of -65 °C to 150 °C.
Allied Electronics:
SZ1SMA5921BT3G Zener Diode, 6.8V 5% 0.5W, 1.5 W SMT 2-Pin SMA
Chip1Stop:
Diode Zener Single 6.8V 5% 1.5W 2-Pin SMA T/R
Verical:
Zener Diode Single 6.8V 5% 2.5Ohm 1500mW Automotive 2-Pin SMA T/R
容差 ±5 %
无卤素状态 Halogen Free
正向电压 1.5V @200mA
耗散功率 500 mW
测试电流 55.1 mA
稳压值 6.8 V
正向电压Max 1.2 V
额定功率Max 1.5 W
工作温度Max 150 ℃
工作温度Min -65 ℃
耗散功率Max 1.5 W
安装方式 Surface Mount
引脚数 2

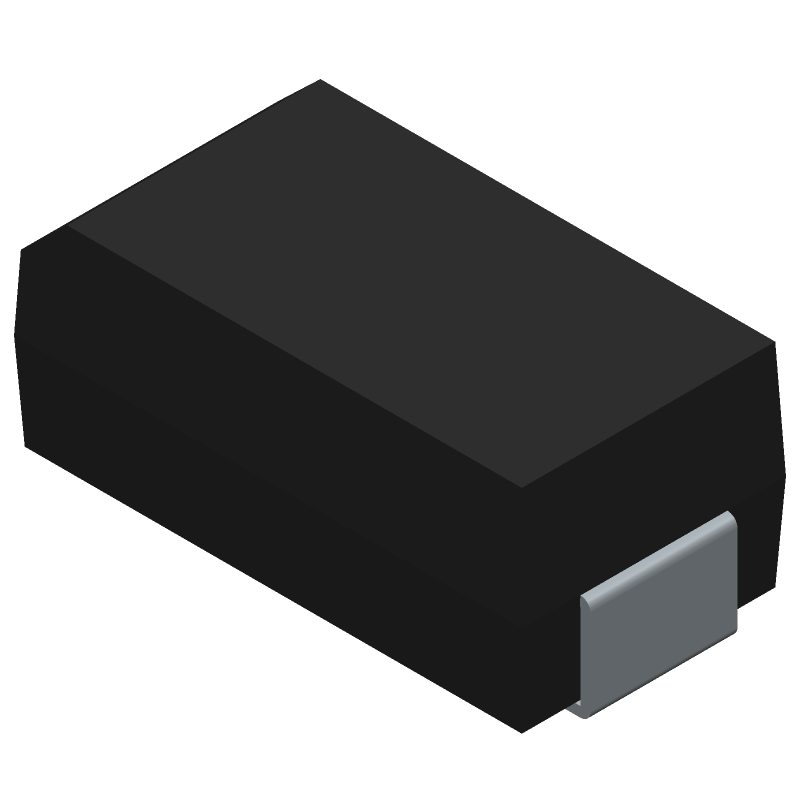

封装 SMA-2
长度 4.57 mm
宽度 2.29 mm
高度 4.57 mm
封装 SMA-2
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZ1SMA5921BT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
1SMA5921BT3 安森美 | 完全替代 | SZ1SMA5921BT3G和1SMA5921BT3的区别 |
1SMA5921BT3G 安森美 | 功能相似 | SZ1SMA5921BT3G和1SMA5921BT3G的区别 |
