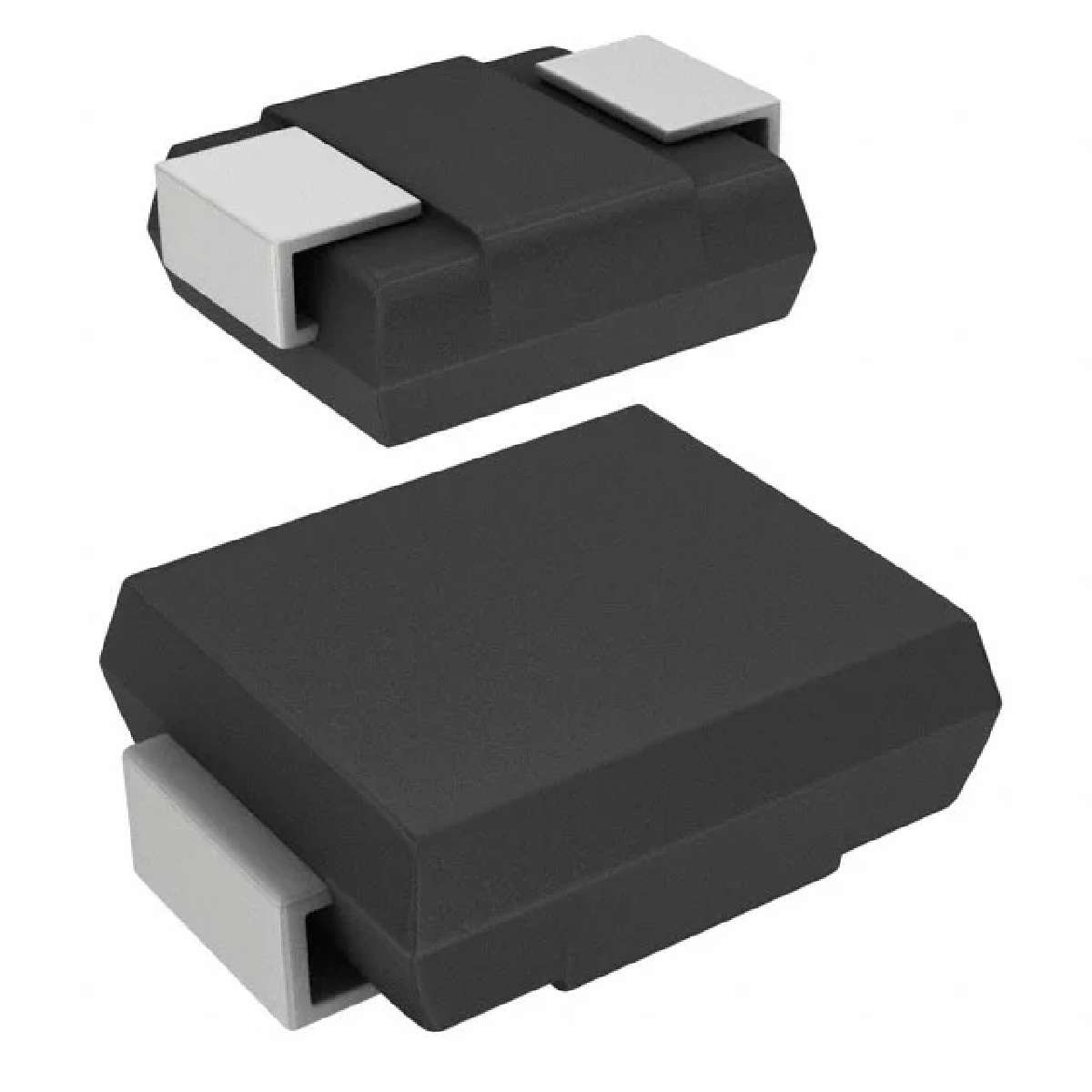

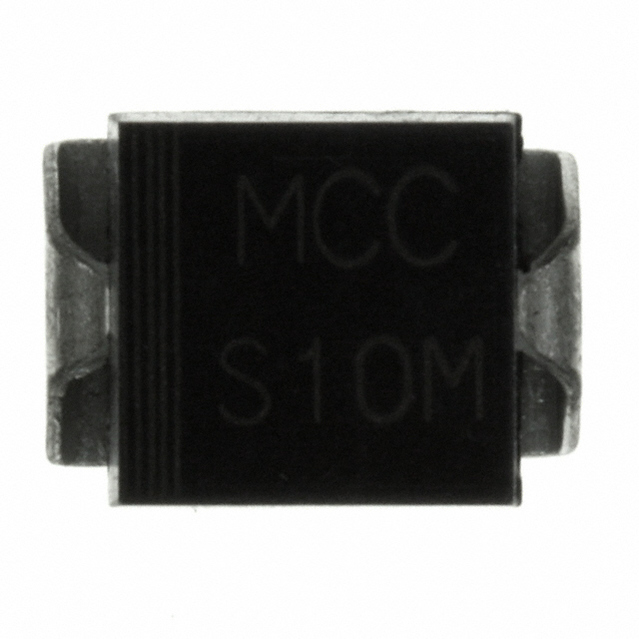

S10M 系列 1000 V 10 A 表面贴装 硅 整流器 - DO-214AB
10 Amp Silicon Rectifier 50 to 1000 Volts
Features
Lead Free Finish/Rohs Compliant Note1 "P"Suffix designates Compliant. See ordering information
Low Thermal Resistance
High Temp Soldering: 260oC for 10 Seconds At Terminals
Maximum Thermal Resistance:10C/W Junction To Case
Epoxy meets UL 94 V-0 flammability rating
Moisture Sensitivity Level 1
Halogen free available upon request by adding suffix "-HF"
得捷:
DIODE GEN PURP 1KV 10A DO214AB
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode S10M-TP rectifier from Micro Commercial Components. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This rectifier has a minimum operating temperature of -55 °C and a maximum of 150 °C. It is made in a single configuration. Its peak non-repetitive surge current is 200 A, while its maximum continuous forward current is 10 A.
Chip1Stop:
Diode Switching 1KV 10A 2-Pin SMC T/R
Verical:
Rectifier Diode Switching 1KV 10A 2-Pin SMC T/R
Win Source:
DIODE GEN PURP 1KV 10A DO214AB
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
S10M-TP Micro Commercial Components 美微科 | 当前型号 | 当前型号 |
S5MS-E3/57T 威世 | 功能相似 | S10M-TP和S5MS-E3/57T的区别 |
10A07 美微科 | 功能相似 | S10M-TP和10A07的区别 |
10A07-TP 美微科 | 功能相似 | S10M-TP和10A07-TP的区别 |
