单双边模拟开关 SINGLE BILATERAL ANALOG SWITCH
This single analog switch is designed for 1.65-V to 5.5-V VCC operation.
The SN74LVC1G66 device can handle analog and digital signals. The device permits bidirectional transmission of signals with amplitudes of up to 5.5 V peak.
NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package.
得捷:
IC SWITCH 1X1 5DSBGA
立创商城:
SN74LVC1G66YZPR
德州仪器TI:
5-V, 1:1 SPST, 1-channel analog switch
艾睿:
Analog Switch Single SPST 5-Pin DSBGA T/R
Verical:
Analog Switch Single SPST 5-Pin DSBGA T/R
电源电压DC 5.00 V
输出接口数 1
触点类型 SPST
供电电流 10 µA
电路数 1
通道数 1
位数 1
传送延迟时间 600 ps
极性 Non-Inverting
输入数 1
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 300 MHz
安装方式 Surface Mount
引脚数 5

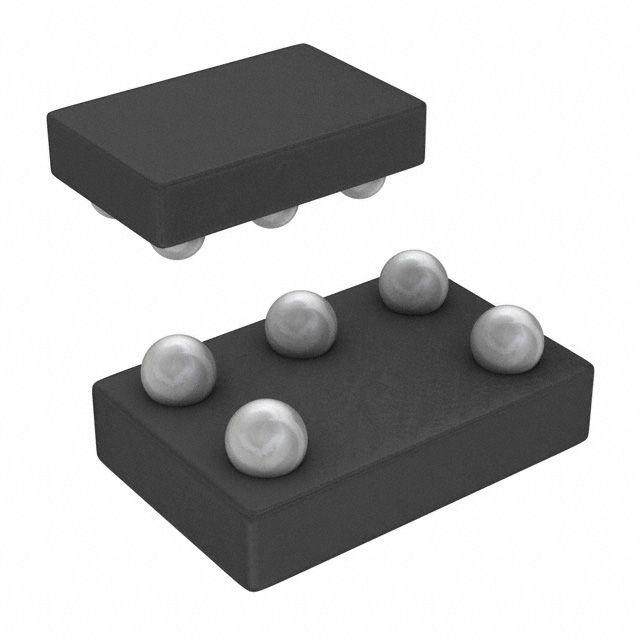

封装 XFBGA-5
封装 XFBGA-5
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74LVC1G66YZPR TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC1G66DBVR 德州仪器 | 完全替代 | SN74LVC1G66YZPR和SN74LVC1G66DBVR的区别 |
SN74LVC1G66DBVTG4 德州仪器 | 完全替代 | SN74LVC1G66YZPR和SN74LVC1G66DBVTG4的区别 |
SN74LVC1G66YZAR 德州仪器 | 完全替代 | SN74LVC1G66YZPR和SN74LVC1G66YZAR的区别 |
