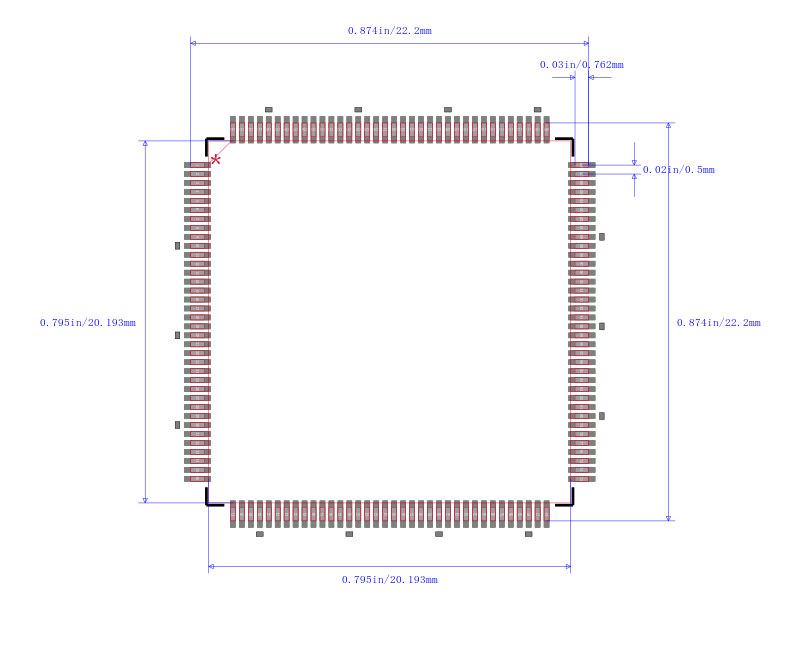

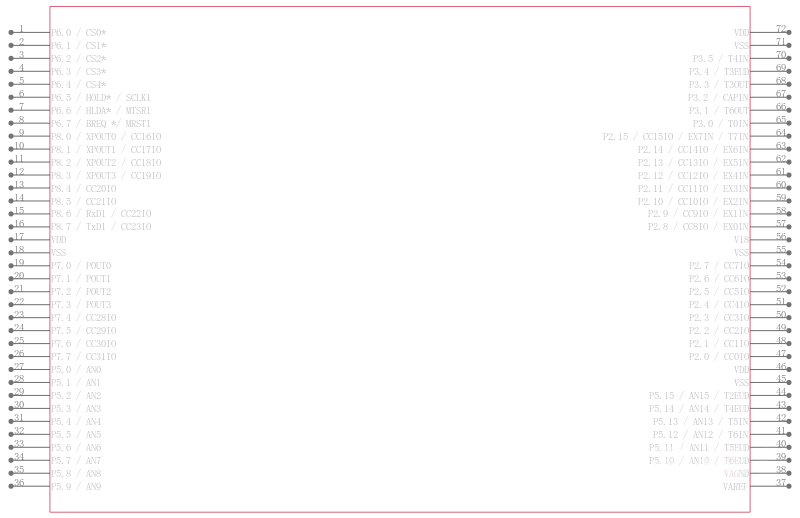

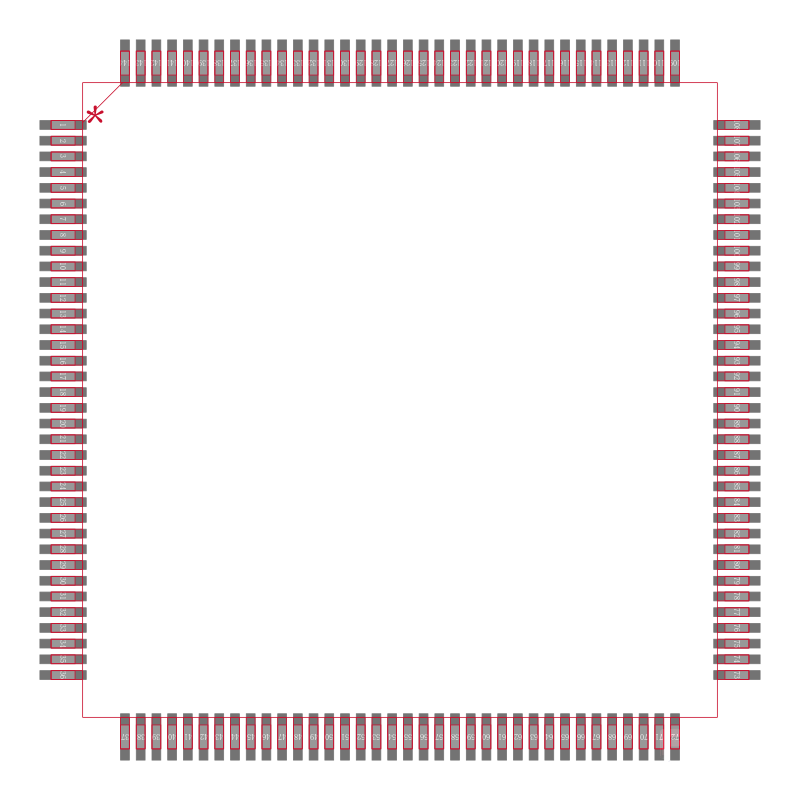

ST10F276Z5T3

16位MCU与MAC单元， 832 KB的闪存和68 KB的RAM 16-bit MCU with MAC unit, 832 Kbyte Flash memory and 68 Kbyte RAM

Introduction

The ST10F276 is a derivative of the STMicroelectronics ST10 family of 16-bit single-chip CMOS microcontrollers. It combines high CPU performance up to 32 million instructions per second with high peripheral functionality and enhanced I/O-capabilities. It also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock

generation via PLL.

Features

■ Highly performant 16-bit CPU with DSP functions

– 31.25ns instruction cycle time at 64MHz max CPU clock

– Multiply/accumulate unit MAC 16 x 16-bit multiplication, 40-bit accumulator

– Enhanced boolean bit manipulations

– Single-cycle context switching support

■ On-chip memories

– 512 Kbyte Flash memory 32-bit fetch

– 320 Kbyte extension Flash memory 16-bit fetch

– Single voltage Flash memories with erase/program controller and 100K erasing/programming cycles.

– Up to 16 Mbyte linear address space for code and data 5 Mbytes with CAN or I2C

– 2 Kbyte internal RAM IRAM

– 66 Kbyte extension RAM XRAM

■ External bus

– Programmable external bus configuration & characteristics for different address ranges

– Five programmable chip-select signals

– Hold-acknowledge bus arbitration support

■ Interrupt

– 8-channel peripheral event controller for single cycle interrupt driven data transfer

– 16-priority-level interrupt system with 56 sources, sampling rate down to 15.6ns

■ Timers

– Two multi-functional general purpose timer units with 5 timers

■ Two 16-channel capture / compare units

■ 4-channel PWM unit + 4-channel XPWM

■ A/D converter

– 24-channel 10-bit

–3µs minimum conversion time

■ Serial channels

– Two synch. / asynch. serial channels

– Two high-speed synchronous channels

–One I2C standard interface

■ 2 CAN 2.0B interfaces operating on 1 or 2 CAN busses 64 or 2x32 message, C-CAN version

■ Fail-safe protection

– Programmable watchdog timer

– Oscillator watchdog

■ On-chip bootstrap loader

■ Clock generation

– On-chip PLL with 4 to 12 MHz oscillator

– Direct or prescaled clock input

■ Real time clock and 32kHz on-chip oscillator

■ Up to 111 general purpose I/O lines

– Individually programmable as input, output or special function

– Programmable threshold hysteresis

■ Idle, power down and stand-by modes

■ Single voltage supply: 5V ±10% embedded regulator for 1.8 V core supply
