三重2通道模拟多路复用器/多路解复用器 TRIPLE 2-CHANNEL ANALOG MULTIPLEXER/DEMULTIPLEXER
This triple 2-channel CMOS analog multiplexer/demultiplexer is designed for 2-V to 5.5-V VCC operation.
The SN74LV4053A handles both analog and digital signals. Each channel permits signals with amplitudes up to 5.5 V peak to be transmitted in either direction.
Applications include signal gating, chopping, modulation or demodulation modem, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
得捷:
IC MUX/DMUX TRIPLE 2X1 16TSSOP
立创商城:
SN74LV4053AQPWRQ1
德州仪器TI:
Automotive 5-V, 2:1 SPDT, 3-channel analog multiplexer
艾睿:
Analog Multiplexer Triple 2:1 Automotive 16-Pin TSSOP T/R
安富利:
Analog Multiplexer Triple 2:1 16-Pin TSSOP T/R
Verical:
Analog Multiplexer Triple 2:1 Automotive 16-Pin TSSOP T/R
Win Source:
IC MUX/DMUX TRIPLE 2X1 16TSSOP / 3 Circuit IC Switch 2:1 75Ohm 16-TSSOP
电源电压DC 2.00V ~ 5.50V
输出接口数 3
供电电流 20 µA
电路数 3
通道数 3
位数 2
传送延迟时间 8.00 ns
电压波节 5.00 V, 3.30 V, 2.50 V
带宽 50 Mhz
输入数 6
工作温度Max 125 ℃
工作温度Min -40 ℃
3dB带宽 50 MHz
安装方式 Surface Mount
引脚数 16

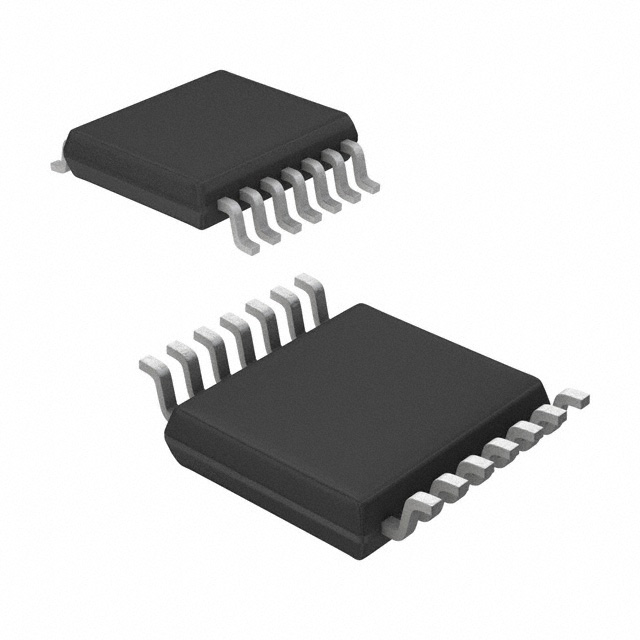

封装 TSSOP-16
封装 TSSOP-16
工作温度 -40℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
