SN74LVC2G53DCTRE4

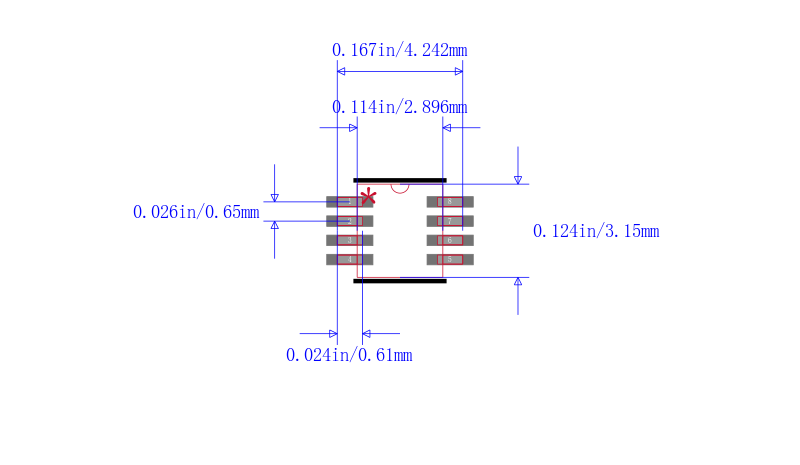

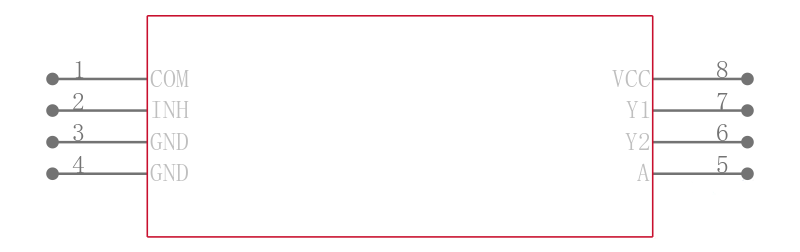

Single Pole, Double-Throw SPDT Analog Switch or 2: 1 Analog Multiplexer/Demultiplexer 8-SM8 -40℃ to 85℃

DESCRIPON

This dual analog multiplexer/demultiplexer is designed for 1.65-V to 5.5-V VCC operation.

The SN74LVC2G53 can handle both analog and digital signals. The device permits signals with amplitudes of up to 5.5 V peak to be transmitted in either direction.

NanoFree™ package technology is a major breakthrough in IC packaging concepts, using the die as the package.

Applications include signal gating, chopping, modulation or demodulation modem, and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.

FEATURES

• Available in the Texas Instruments NanoFree™ Package

• 1.65-V to 5.5-V VCC Operation

• Ioff Support Live Insertion, Partial Power Down Mode and Back Drive Protection

• High On-Off Output Voltage Ratio

• High Degree of Linearity

• High Speed, Typically 0.5 ns VCC = 3 V, CL = 50 pF

• Low On-State Resistance, Typically 96.5 Ω VCC = 4.5 V

• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

• ESD Protection Exceeds JESD 22

   – 2000-V Human-Body Model A114-A

   – 200-V Machine Model A115-A

   – 1000-V Charged-Device Model C101
