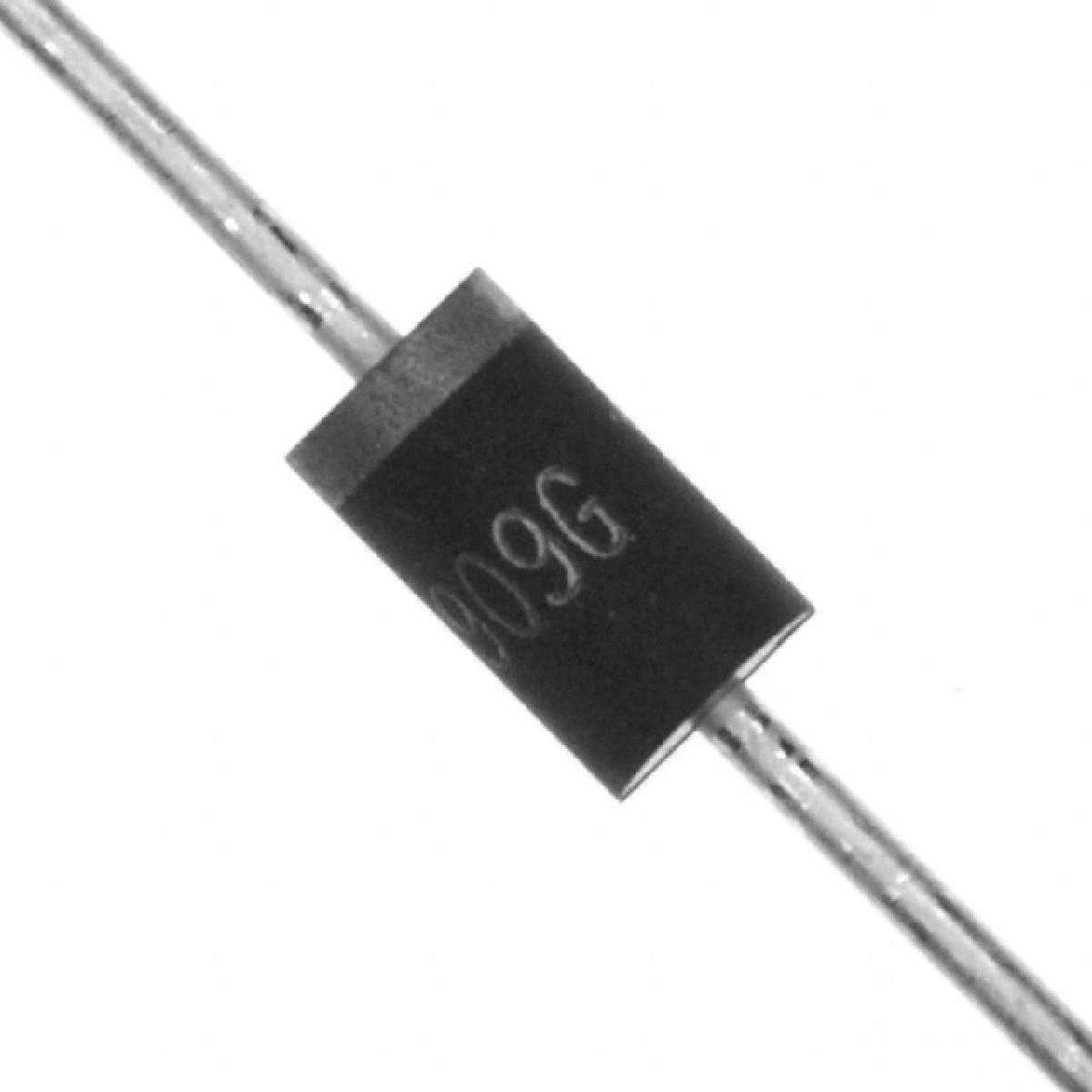

SRP300J-E3/54

Diode Switching 600V 3A 2Pin DO-201AD T/R

FEATURES

• Glass passivated chip junction

• Fast switching for high efficiency

• Low forward voltage drop

• Low leakage current

• High forward surge capability

• Solder dip 275 °C max. 10 s, per JESD 22-B106

• Compliant to RoHS directive 2002/95/EC and in accordance to WEEE 2002/96/EC

TYPICAL APPLICATIONS

For use in fast switching rectification of power supply, inverters, converters and freewheeling diodes for consumer and telecommunication.

Note

• These devices are not AEC-Q101 qualified.
