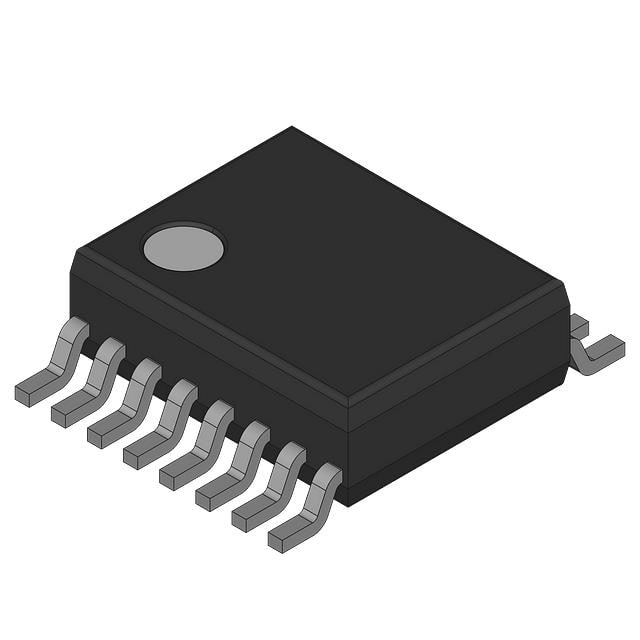

SN74CBT3125DBQR 解码器、多路复用器、信号开关 SSOP-16 标记CU125
逻辑类型Logic Type| FET 总线开关 FET Bus Switch \---|--- 电路数Number of Circuits| 1 x 1:1 输入数Number of Inputs| 4 电源电压VccVoltage - Supply| 静态电流IqCurrent - Quiescent Max| 单电源 Single Supply 输出高,低电平电流Current - Output High, Low| 4.0V ~ 5.5 V 低逻辑电平Logic Level - Low| The SN74CBT3125 quadruple FET bus switch features independent line switches. Each switch is disabled when the associated output-enable OE input is high.To ensure the high-impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver. Standard ’125-Type Pinout D, DB, DGV,and PW Packages 5-Ω Switch Connection Between Two Ports TTL-Compatible Input Levels 高逻辑电平Logic Level - High| SN74CBT3125四场效应管总线开关设有独立的线路开关。每个开关被禁用时,相关的输出使能(OE)输入为高。为了确保在开机或断电高阻抗状态,OE应当通过上拉电阻连接到VCC;驱动器的电流吸收能力确定电阻的最小值。 标准"125-型接脚分布(D,DB,DGV,PW包) 5Ω开关连接两个端口之间 TTL兼容的输入电平 传播延迟时间@Vcc,CLMax Propagation Delay @ V, Max CL| Description & Applications| 描述与应用|
电源电压DC 4.00V ~ 5.50V
输入电压DC 2.00 V
输出电流 64.0 mA
触点类型 SPST
供电电流 250 mA
位数 4
传送延迟时间 250 ps
极性 Non-Inverting
电压波节 5.00 V
带宽 200 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
安装方式 Surface Mount
引脚数 16
封装 SSOP-16
封装 SSOP-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74CBT3125DBQR TI 德州仪器 | 当前型号 | 当前型号 |
SN74CBT3125DBQRE4 德州仪器 | 完全替代 | SN74CBT3125DBQR和SN74CBT3125DBQRE4的区别 |
SN74CBT3125DBR 德州仪器 | 类似代替 | SN74CBT3125DBQR和SN74CBT3125DBR的区别 |
SN74CBT3125CDBQR 德州仪器 | 类似代替 | SN74CBT3125DBQR和SN74CBT3125CDBQR的区别 |
