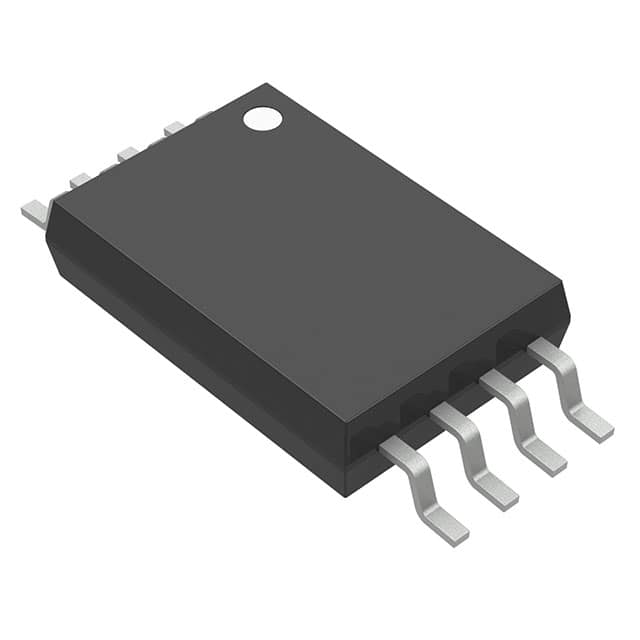

SN74CBT3306CPWR

具有 –2V 下冲保护的 5V、1:1 SPST、2 通道 FET 总线开关（低电平有效） 8-TSSOP -40 to 85

description/ordering information

The SN74CBT3306C is a high-speed TTL-compatible FET bus switch with low ON-state resistance ron, allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT3306C provides protection for undershoot up to −2 V by sensing an  undershoot event and ensuring that the switch remains in the proper OFF state.

● Undershoot Protection for Off-Isolation on A and B Ports Up To −2 V

● Bidirectional Data Flow, With Near-Zero Propagation Delay

● Low ON-State Resistance ron Characteristics ron = 3 Ω Typical

● Low Input/Output Capacitance Minimizes Loading and Signal Distortion CioOFF = 5 pF Typical

● Data and Control Inputs Provide Undershoot Clamp Diodes

● Low Power Consumption ICC = 3 µA Max

● VCC Operating Range From 4 V to 5.5 V

● Data I/Os Support 0 to 5-V Signaling Levels 0.8-V, 1.2-V, 1.5-V, 1.8-V, 2.5-V, 3.3-V, 5-V

● Control Inputs Can Be Driven by TTL or 5-V/3.3-V CMOS Outputs

● Ioff Supports Partial-Power-Down Mode Operation

● Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

● ESD Performance Tested Per JESD 22

  − 2000-V Human-Body Model A114-B, Class II

  − 1000-V Charged-Device Model C101

● Supports Both Digital and Analog Applications: USB Interface, Bus Isolation, Low-Distortion  Signal Gating
