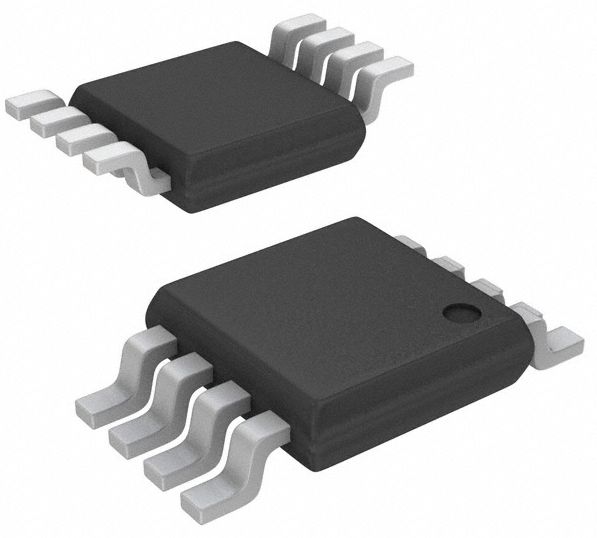

TEXAS INSTRUMENTS SN74LVC2G53DCUT 逻辑芯片, 模拟多路复用器/分离器, 1通道, VSSOP-8
The is a single 2:1 Analog Multiplexer/Demultiplexer designed for 1.65 to 5.5V VCC operation. It can handle both analog and digital signals. This device permits signals with amplitudes of up to 5.5V peak to be transmitted in either direction. It supports the applications include signal gating, chopping, modulation or demodulation modem and signal multiplexing for analog-to-digital and digital-to-analog conversion systems.
- .
- High on-OFF output voltage ratio
- .
- High degree of linearity
- .
- 6.5R Typically low ON-state resistance
- .
- Latch-up performance exceeds 100mA per JESD, 78 class II
- .
- Green product and no Sb/Br
电源电压DC 1.65V min
输出接口数 1
供电电流 1 µA
电路数 1
通道数 1
针脚数 8
位数 2
传送延迟时间 600 ps
输入数 2
工作温度Max 85 ℃
工作温度Min -40 ℃
3dB带宽 300 MHz
电源电压Max 5.5 V
电源电压Min 1.65 V
安装方式 Surface Mount
引脚数 8
封装 VSSOP-8
封装 VSSOP-8
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SN74LVC2G53DCUT TI 德州仪器 | 当前型号 | 当前型号 |
SN74LVC2G53DCURG4 德州仪器 | 完全替代 | SN74LVC2G53DCUT和SN74LVC2G53DCURG4的区别 |
SN74LVC2G53DCUR 德州仪器 | 类似代替 | SN74LVC2G53DCUT和SN74LVC2G53DCUR的区别 |
SN74LVC2G53DCUTE4 德州仪器 | 类似代替 | SN74LVC2G53DCUT和SN74LVC2G53DCUTE4的区别 |
