数字总线开关 IC 3.3V ABT 16-Bit Buff/Drv W/3-St Otpt
The SN74CBT16245C is a high-speed TTL-compatible FET bus switch with low ON-state resistance ron, allowing for minimal propagation delay. Active Undershoot-Protection Circuitry on the A and B ports of the SN74CBT16245C provides protection for undershoot up to 2 V by sensing an undershoot event and ensuring that the switch remains in the proper OFF state.
The SN74CBT16245C is organized as two 8-bit bus switches with separate output-enable 1OE\, 2OE\\\\ inputs. It can be used as two 8-bit bus switches or as one 16-bit bus switch. When OE\ is low, the associated 8-bit bus switch is ON, and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE\ is high, the associated 8-bit bus switch is OFF and the high-impedance state exists between the A and B ports.
This device is fully specified for partial-power-down applications using Ioff. The Ioff feature ensures that damaging current will not backflow through the device when it is powered down. The device has isolation during power off.
To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.
电源电压DC 4.00V ~ 5.50V
输出电流 64.0 mA
触点类型 SPST
位数 16
传送延迟时间 240 ps
电压波节 4.00 V, 5.00 V
带宽 200 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4V ~ 5.5V
安装方式 Surface Mount
引脚数 48

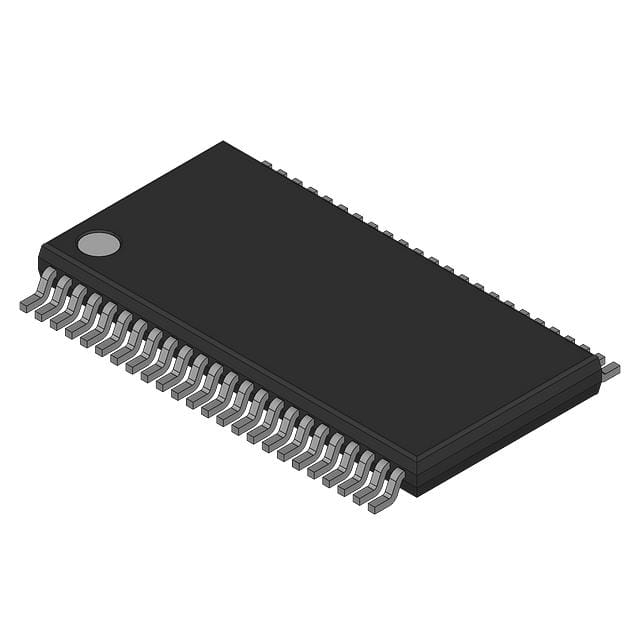

封装 TSSOP-48
长度 12.5 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74CBT16245CDGGR TI 德州仪器 | 当前型号 | 当前型号 |
SN74AHCT16245DGGR 德州仪器 | 类似代替 | SN74CBT16245CDGGR和SN74AHCT16245DGGR的区别 |
SN74ABT16245ADGGR 德州仪器 | 类似代替 | SN74CBT16245CDGGR和SN74ABT16245ADGGR的区别 |
SN74ABT16244ADGGR 德州仪器 | 类似代替 | SN74CBT16245CDGGR和SN74ABT16244ADGGR的区别 |
