20位FET总线开关 20-BIT FET BUS SWITCH
The SN74CBT16210 provides 20 bits of high-speed TTL-compatible bus switching. The low on-state resistance of the switch allows connections to be made with minimal propagation delay.
The device is organized as a dual 10-bit bus switch with separate output-enable OE\\\\ inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. When OE\ is low, the associated 10-bit bus switch is on, and port A is connected to port B. When OE\ is high, the switch is open, and the high-impedance state exists between the ports. View datasheet View product folder
电源电压DC 4.00V ~ 5.50V
输出电流 64 mA
触点类型 SPST
供电电流 250 mA
通道数 20
位数 20
传送延迟时间 250 ps
极性 Non-Inverting
电压波节 5.00 V
带宽 200 MHz
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4 V
安装方式 Surface Mount
引脚数 48

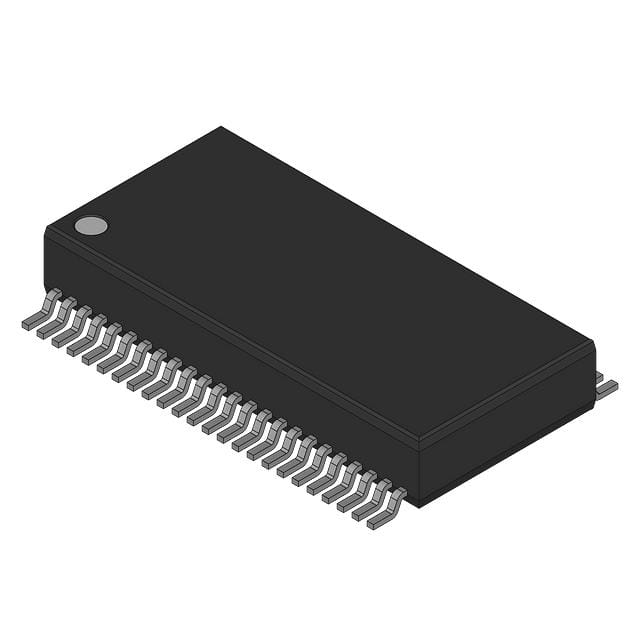

封装 SSOP-48
长度 15.88 mm
宽度 7.49 mm
高度 2.59 mm
封装 SSOP-48
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74CBT16210DL TI 德州仪器 | 当前型号 | 当前型号 |
SN74CBTD16210DL 德州仪器 | 类似代替 | SN74CBT16210DL和SN74CBTD16210DL的区别 |
SN74CBTD16210DLR 德州仪器 | 类似代替 | SN74CBT16210DL和SN74CBTD16210DLR的区别 |
