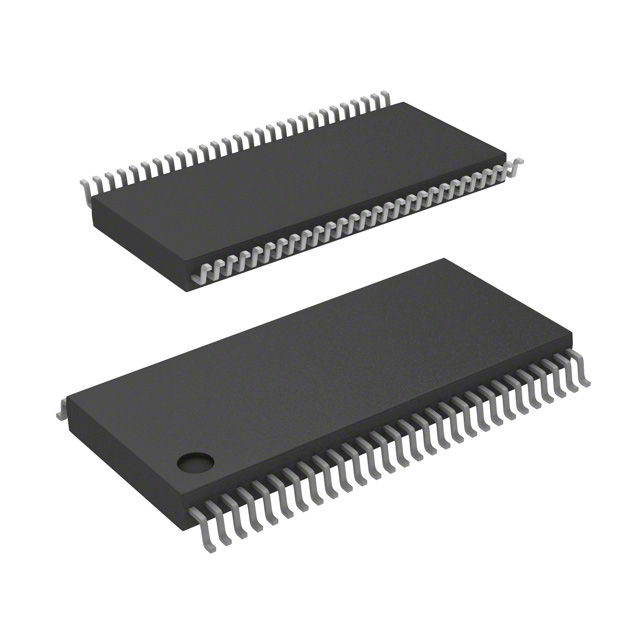

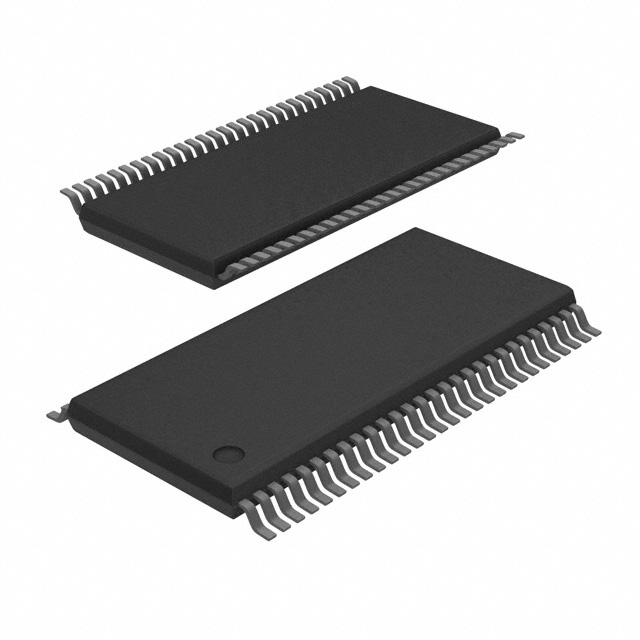

TEXAS INSTRUMENTS SN74CB3T16211DGGR 芯片, FET总线开关, 24位, TSSOP-56, 整卷
The is a 24-bit high-speed TTL-compatible FET Bus Switch with low ON-state resistance ron, allowing for minimal propagation delay. The device fully supports mixed-mode signal operation on all data I/O ports by providing voltage translation that tracks VCC. It also supports systems using 5C TTL, 3.3V LVTTL and 2.5V CMOS switching standards, as well as user-defined switching levels. The I/O port of this device has a pull-up current source that maintains the output voltage at VCC when the device is ON and the input is greater than or equal to VCC - 1. Because of the pull-up current source, the output voltage level may be less than VCC when the operating frequency is low and the I/O port is connected to a pull-down resistor. In order to maintain the output voltage at VCC, a pull-up resistor must be connected to VCC instead of a pull-down resistor to ground.
电源电压DC 2.30V min
输出电流 64 mA
触点类型 SPST
针脚数 56
位数 24
传送延迟时间 250 ps
极性 Non-Inverting
带宽 100 MHz
输入数 24
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 2.3V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.3 V
安装方式 Surface Mount
引脚数 56
封装 TSSOP-56
长度 14 mm
宽度 6.1 mm
高度 1.15 mm
封装 TSSOP-56
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 工业, 通信与网络, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SN74CB3T16211DGGR TI 德州仪器 | 当前型号 | 当前型号 |
74CB3T16211DGGRE4 德州仪器 | 类似代替 | SN74CB3T16211DGGR和74CB3T16211DGGRE4的区别 |
74CB3T16211DGGRG4 德州仪器 | 类似代替 | SN74CB3T16211DGGR和74CB3T16211DGGRG4的区别 |
