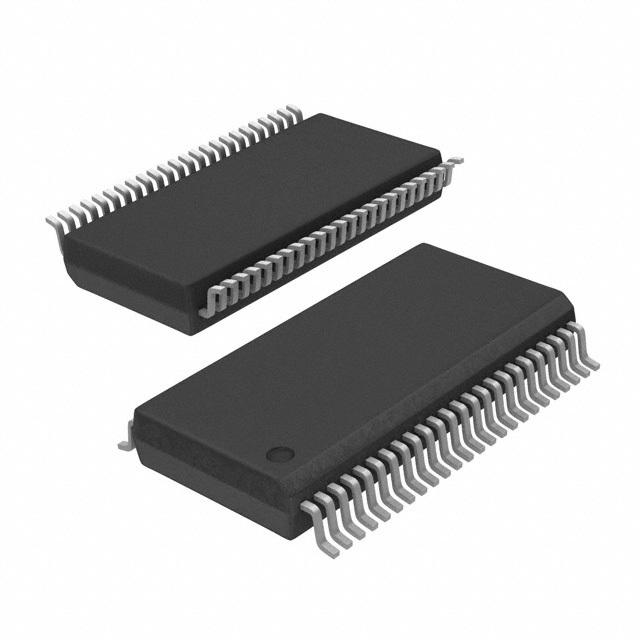

SN74CB3Q16210DGGR图片9
SN74CB3Q16210DGGR图片10

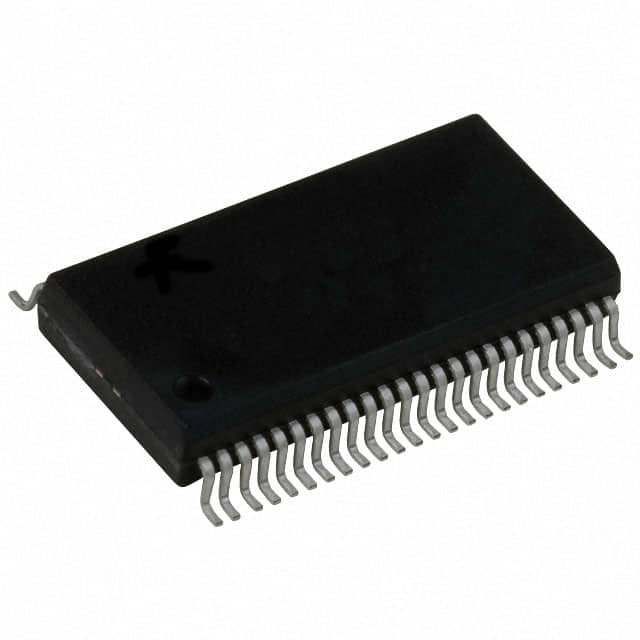

SN74CB3Q16210DGGR图片11
SN74CB3Q16210DGGR概述

20位转换器2.5 -V / 3.3 V低压FET总线开关 20-BIT SWITCH 2.5-V/3.3-V LOW-VOLTAGE FET BUS SWITCH

The SN74CB3Q16210 is a high-bandwidth FET bus switch utilizing a charge pump to elevate the gate voltage of the pass transistor, providing a low and flat ON-state resistance ron. The low and flat ON-state resistance allows for minimal propagation delay and supports rail-to-rail switching on the data input/output I/O ports. The device also features low data I/O capacitance to minimize capacitive loading and signal distortion on the data bus. Specifically designed to support high-bandwidth applications, the SN74CB3Q16210 provides an optimized interface solution ideally suited for broadband communications, networking, and data-intensive computing systems.

The SN74CB3Q16210 is organized as two 10-bit bus switches with separate output-enable 1OE\, 2OE\\\\ inputs. It can be used as two 10-bit bus switches or as one 20-bit bus switch. When OE\ is low, the associated 10-bit bus switch is ON and the A port is connected to the B port, allowing bidirectional data flow between ports. When OE\ is high, the associated 10-bit bus switch is OFF, and a high-impedance state exists between the A and B ports.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry prevents damaging current backflow through the device when it is powered down. The device has isolation during power off.

To ensure the high-impedance state during power up or power down, OE\ should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

SN74CB3Q16210DGGR中文资料参数规格
技术参数

电源电压DC 2.30V ~ 3.60V

输出电流 30.0 mA

触点类型 SPST

位数 20

传送延迟时间 150 ps

极性 Non-Inverting

电压波节 2.50 V, 3.30 V

静态电流 1.00 mA

带宽 500 MHz

工作温度Max 85 ℃

工作温度Min -40 ℃

电源电压 2.3V ~ 3.6V

封装参数

安装方式 Surface Mount

引脚数 48

封装 TSSOP-48

外形尺寸

封装 TSSOP-48

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册
