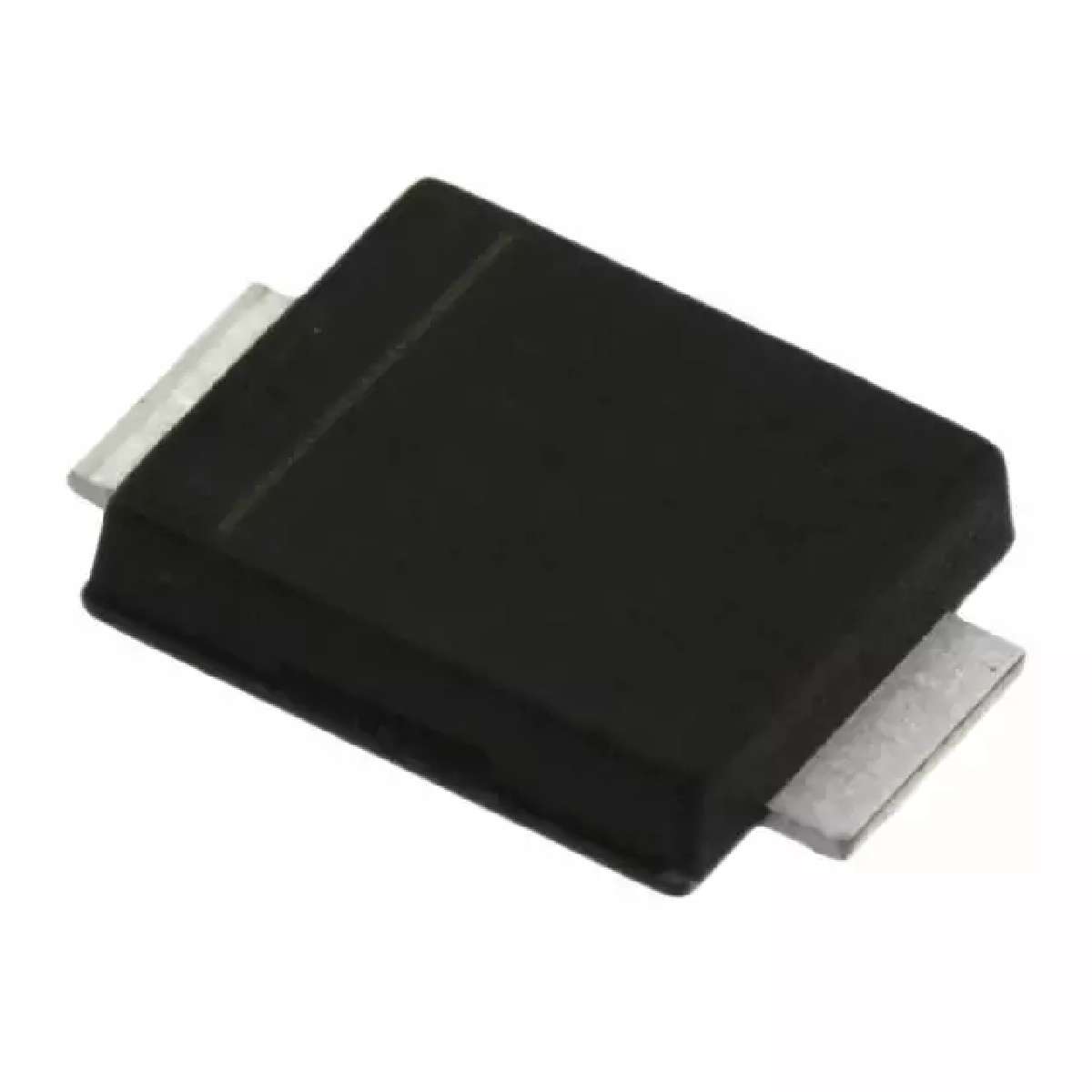

STMICROELECTRONICS STPS2L25UF 小信号肖特基二极管, 单, 25 V, 2 A, 450 mV, 75 A, 150 °C
The is a low drop Power Schottky Rectifier featuring very low forward voltage drop for less power dissipation. This Single Schottky rectifier suited to switched mode power supplies and high frequency DC to DC converters. It is packaged in SMB, SMB flat for thermal resistance characteristic improvement. This device is especially intended for use in parallel with MOSFETs in synchronous rectification.
- .
- Optimized conduction/reverse losses trade-off which means the highest efficiency in the applications
- .
- Avalanche capability specified
- .
- 150°C Operating junction temperature maximum
针脚数 2
正向电压 450mV @2A
热阻 15℃/W RθJL
正向电流 2 A
最大正向浪涌电流（Ifsm） 75 A
正向电压Max 450 mV
正向电流Max 2 A
工作温度Max 150 ℃
工作温度Min -65 ℃
工作结温 150℃ Max
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.6 mm
宽度 3.95 mm
高度 1.1 mm
封装 DO-214AA
工作温度 -65℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
