PANASONIC ELECTRIC WORKS SFN4D-DC12V 安全继电器, SFN4D Series, 4PST-常开, DPST-常闭, 12 VDC, 6 A, 通孔安装, 焊接
The SFN4D series low-profile Safety Relay with forcibly guided double contacts. This relay complies with EN 50205, type-B. It offers nominal coil power consumption of 390mW and double contacts with low contact resistance.
触点电镀 Gold
触点类型 DPST-NC
接触电阻 30 mΩ
线圈电压 12 VDC
线圈电流 32.5 mA
线圈电阻 369 Ω
线圈电压DC 12 V
线圈功率 400 mW
工作温度Max 92 ℃
工作温度Min -25 ℃

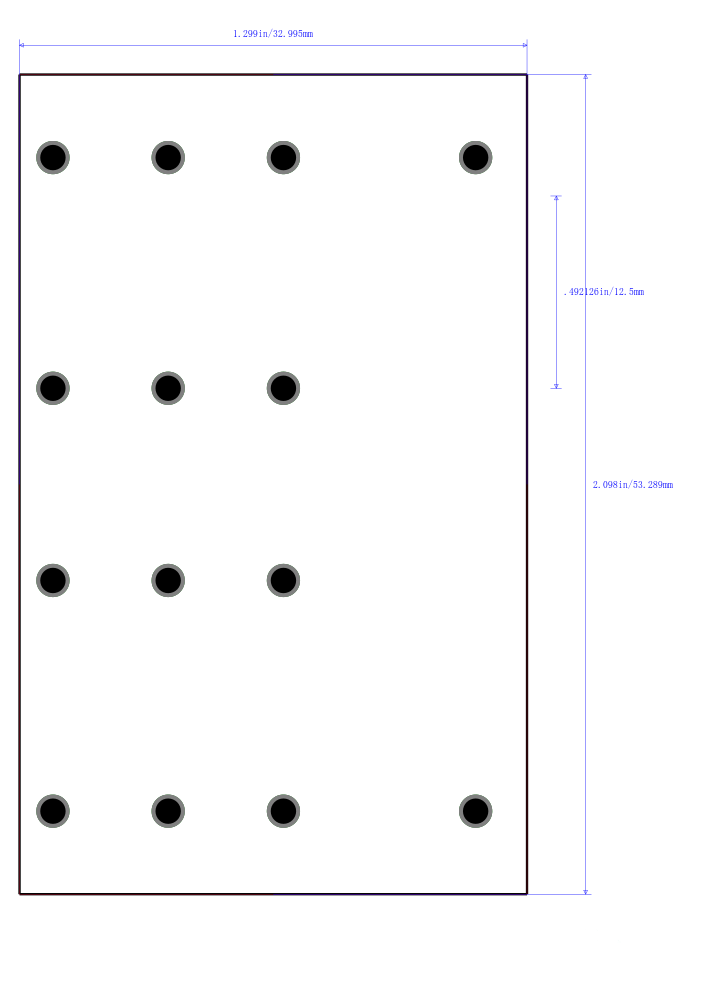

安装方式 Through Hole
高度 14.5 mm
触点材质 Silver Tin Oxide
工作温度 -25℃ ~ 92℃
产品生命周期 Active
包装方式 Tube
制造应用 Industrial, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536490050
