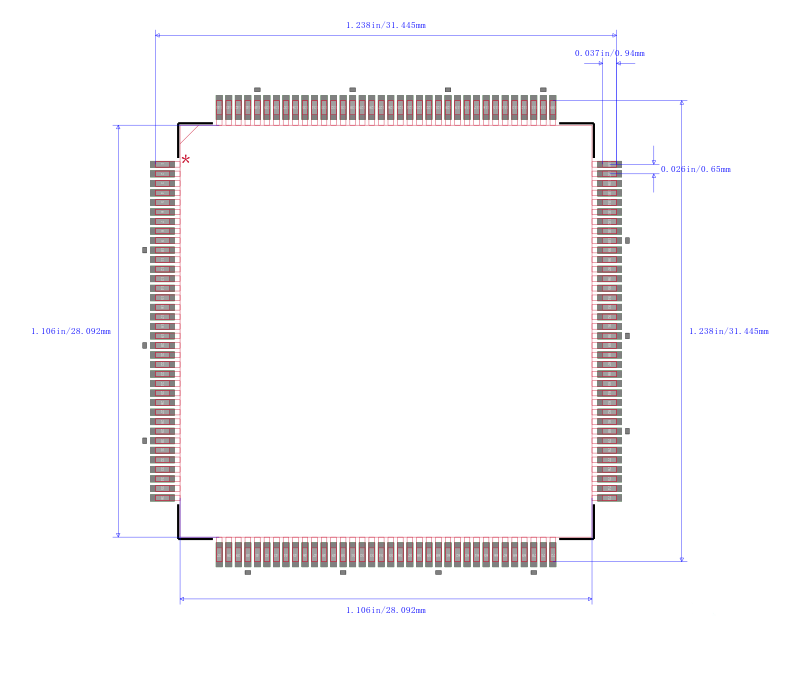

ST10F272Z2Q3

16位MCU采用256字节的闪存和20 KB的RAM 16-bit MCU with 256 Kbyte Flash memory and 20 Kbyte RAM

Introduction

The ST10F272 device is a derivative of the STMicroelectronics ST10 family of 16-bit single chip CMOS microcontrollers.

The ST10F272 combines high CPU performance up to 32 million instructions per second with high peripheral functionality and enhanced I/O-capabilities. It also provides on-chip high-speed single voltage Flash memory, on-chip high-speed RAM, and clock generation via PLL.

ST10F272 is processed in 0.18µm CMOS technology. The MCU core and the logic is supplied with a 5V to 1.8V on-chip voltage regulator. The part is supplied with a single 5V ly and I/Os work at 5V.

Features

■ 16-bit CPU with DSP functions

   – 31.25ns instruction cycle time at 64MHz max CPU clock

   – Multiply/accumulate unit MAC 16 x 16-bit multiplication, 40-bit accumulator

   – Enhanced boolean bit manipulations

   – Single-cycle context switching support

■ On-chip memories

   – 256 Kbyte Flash memory 32-bit fetch

   – Single voltage Flash memories with erase/program controller and 100K erasing/programming cycles.

   – Up to 16 Mbyte linear address space for code and data 5 Mbytes with CAN or I2C

   – 2 Kbyte internal RAM IRAM

   – 18 Kbyte extension RAM XRAM

   – Programmable external bus configuration & characteristics for different address ranges

   – Five programmable chip-select signals

   – Hold-acknowledge bus arbitration support

■ Interrupt

   – 8-channel peripheral event controller for single cycle interrupt driven data transfer

   – 16-priority-level interrupt system with 56 sources, sampling rate down to 15.6ns

■ Timers

   – Two multi-functional general purpose timer units with 5 timers

■ Two 16-channel capture / compare units

■ 4-channel PWM unit + 4-channel XPWM

■ A/D converter

   – 24-channel 10-bit

   – 3 µs minimum conversion time

■ Serial channels

   – Two synch. / asynch. serial channels

   – Two high-speed synchronous channels

   – One I2C standard interface

■ 2 CAN 2.0B interfaces operating on 1 or 2 CAN busses 64 or 2x32 message, C-CAN version

■ Fail-safe protection

   – Programmable watchdog timer

   – Oscillator watchdog

■ On-chip bootstrap loader

■ Clock generation

   – On-chip PLL with 4 to 8 MHz oscillator

   – Direct or prescaled clock input

■ Real time clock and 32 kHz on-chip oscillator

■ Up to 111 general purpose I/O lines

   – Individually programmable as input, output or special function

   – Programmable threshold hysteresis

■ Idle, power down and stand-by modes

■ Single voltage supply: 5V ±10%
