20V,40W,双共阳极,齐纳二极管TVS

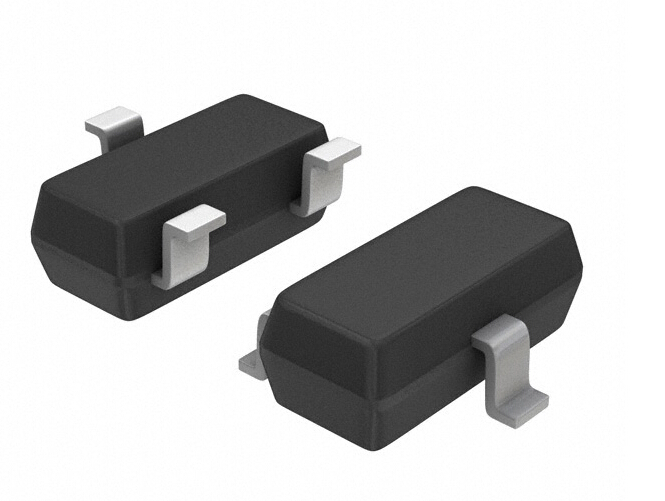

28V 夹子 1.4A Ipp TVS - 表面贴装型 SOT-23-3(TO-236)
得捷:
TVS DIODE 17VWM 28VC SOT23-3
艾睿:
Protect users and systems from electrostatic discharge with this tvs SZMMBZ20VALT1G ESD protection device from ON Semiconductor. This device&s;s maximum clamping voltage is 28 V. This ESD diode has a maximum ESD protection device voltage of 16@HBM/0.4@MM kV. This ESD diode has an operating temperature range of -55 °C to 150 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a dual common anode|single configuration.
安富利:
ESD Suppressor TVS 16KV 3-Pin SOT-23 T/R
Chip1Stop:
ESD Suppressor TVS 16kV Automotive 3-Pin SOT-23 T/R
Verical:
ESD Suppressor Diode Zener Uni-Dir/Bi-Dir 17V Automotive 3-Pin SOT-23 T/R
力源芯城:
20V,40W,双共阳极,齐纳二极管TVS
耗散功率 0.3 W
钳位电压 28 V
测试电流 1 mA
最大反向击穿电压 21 V
脉冲峰值功率 40 W
最小反向击穿电压 19 V
工作温度Max 150 ℃
工作温度Min -55 ℃
工作结温 -55℃ ~ 150℃
耗散功率Max 300 mW
安装方式 Surface Mount
引脚数 3
封装 SOT-23-3
高度 0.94 mm
封装 SOT-23-3
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
SZMMBZ20VALT1G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MMBZ20VALT1G 安森美 | 类似代替 | SZMMBZ20VALT1G和MMBZ20VALT1G的区别 |
SZMMBZ20VAWT1G 安森美 | 功能相似 | SZMMBZ20VALT1G和SZMMBZ20VAWT1G的区别 |
MMBZ20VAWT1G 安森美 | 功能相似 | SZMMBZ20VALT1G和MMBZ20VAWT1G的区别 |
