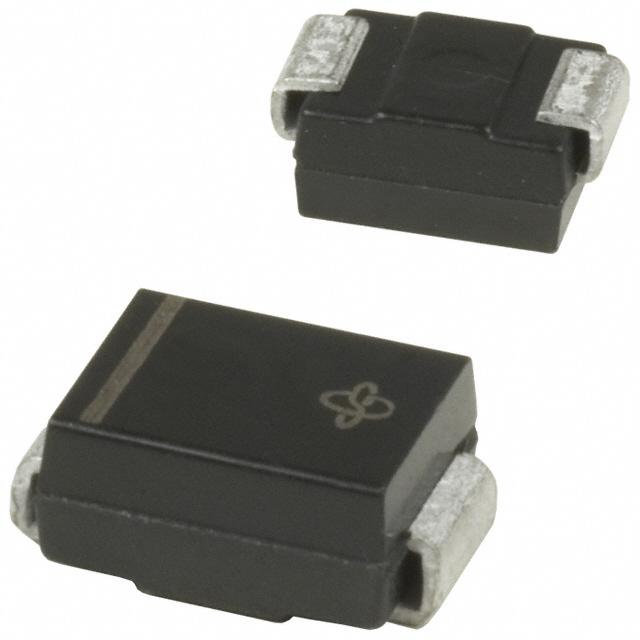

SMBJ40A-E3/52

VISHAY  SMBJ40A-E3/52  二极管, TVS, 600W, 40V, DO-214AA

**Features:**

* Low Profile Package

* Ideal for Automated Placement

* Glass Passivated Chip Junction

* Available in Uni-Directional and Bi-Directional

* 600 W Peak Pulse Power Capability with a 10/1000 μs Waveform, Repetitive Rate Duty Cycle: 0.01%

* Excellent Clamping Capability

* Very Fast Response Time

* Low Incremental Surge Resistance

* Meets MSL Level 1, Per J-STD-020, LF Maximum Peak of 260°C

* Solder Dip 260°C, 40 s

* Component in Accordance to RoHS 2002/95/EC and WEEE 2002/96/EC **Applications:** Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET, signal lines of sensor units for consumer, computer, industrial, automotive and telecommunication.
