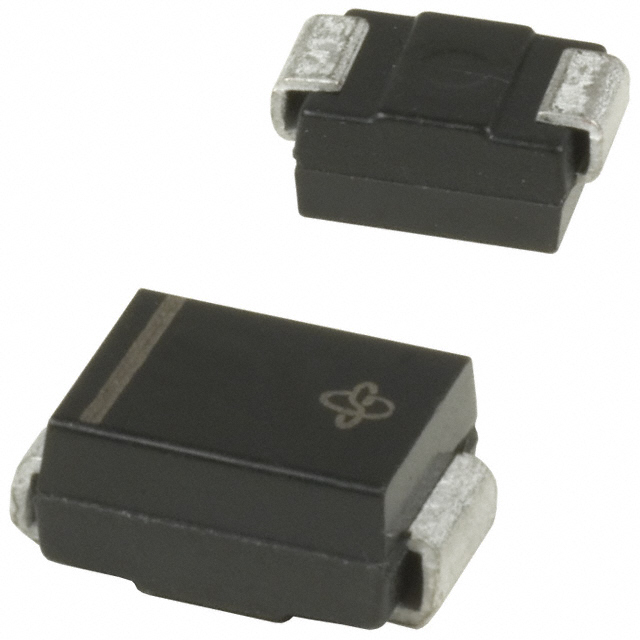

VISHAY SMBJ28A-E3/52 TVS二极管, TVS, AEC-Q101 TRANSZORB SMBJ系列, 单向, 28 V, 45.4 V, DO-214AA, 2 引脚
The TRANSZORB SMBJ series surface-mount Transient Voltage Suppressor Diode offers 600W peak pulse power capability with a 10/1000µs waveform, 0.01% repetitive rate duty cycle. It is used in sensitive electronics protection against voltage transients induced by inductive load switching and lighting on ICs, MOSFET and signal lines of sensor units.
- .
- Ideal for automated placement
- .
- Glass passivated chip junction
- .
- Available in unidirectional and bidirectional
- .
- Excellent clamping capability
- .
- Very fast response time
- .
- Low incremental surge resistance
- .
- -55 to 150°C Operating junction temperature range
额定功率 600 W
击穿电压 34.4 V
电路数 1
针脚数 2
耗散功率 600 W
钳位电压 45.4 V
测试电流 1 mA
最大反向击穿电压 34.4 V
脉冲峰值功率 600 W
最小反向击穿电压 31.1 V
工作温度Max 150 ℃
工作温度Min 55 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.57 mm
宽度 3.94 mm
高度 2.44 mm
封装 DO-214AA
工作温度 -55℃ ~ 150℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 车用, Lighting, Computers & Computer Peripherals, Communications & Networking, Industrial, Sensing & Instrumentation, Consumer Electronics, Automotive, 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
SMBJ28A-E3/52 Vishay Semiconductor 威世 | 当前型号 | 当前型号 |
SMBJ30A-E3/52 威世 | 类似代替 | SMBJ28A-E3/52和SMBJ30A-E3/52的区别 |
SMBJ28A-E3/5B 威世 | 类似代替 | SMBJ28A-E3/52和SMBJ28A-E3/5B的区别 |
SMBJ30A 力特 | 功能相似 | SMBJ28A-E3/52和SMBJ30A的区别 |
