SMBJ170A

LITTELFUSE  SMBJ170A  二极管, TVS, 170V

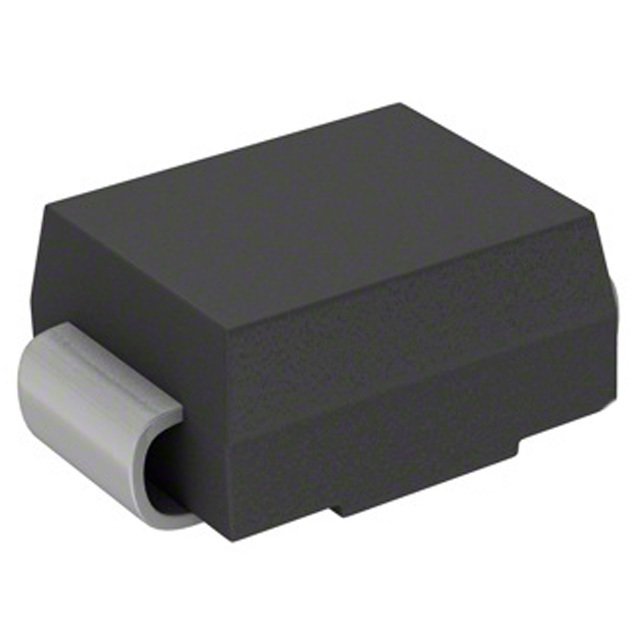

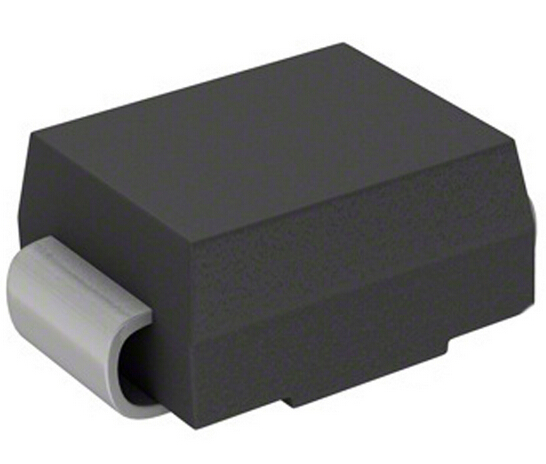

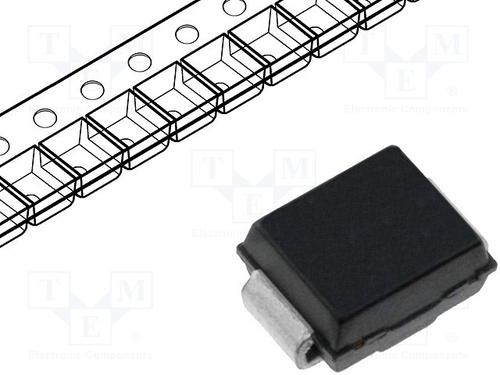

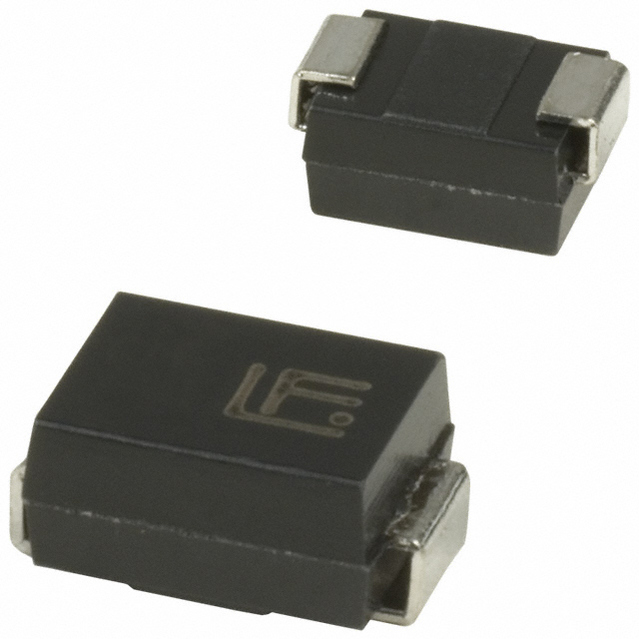

The from is a SMBJ series 600W, surface mount unidirectional transient voltage suppression diode in DO-214AA package. It features excellent clamping capability, low incremental surge resistance, low profile package, moulded plastic body over glass passivated junction, built-in strain relief and fast response time of typically less than 1.0ps from 0Vs to BV min. The peak pulse power dissipation PPPM is 600W at TA=25°C, 10/1000µs waveform, 0.01% repetition rate duty cycle, power dissipation is 5W on infinite heat sink at TL=50°C and peak forward surge current IFSM is 100A measured on 8.3ms single half sine wave or equivalent square wave. This SMBJ series transient voltage suppression diode is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O interfaces, VCC bus and other vulnerable circuits.

.

Reverse stand off voltage VR of 170V and maximum reverse leakage IR of 1µA at VR

.

Breakdown voltage VBR of 189V minimum, 209V maximum at 1mA test current IT

.

Maximum clamping voltage VC of 275V at IPP and maximum peak pulse current IPP of 2.2A

.

0.108%/C maximum temperature coefficient of VBR

.

Typical failure mode is short from over specified voltage or current

.

UL E230531 approved, plastic package is flammability rated V-0 per UL standard

.

IEC-61000-4-2 ESD 30KV air, 30KV contact protection

.

Suitable for surface mounted applications to optimize board space

.

Operating temperature range from -65°C to 150°C and 260°C/40sec high temperature to reflow soldering

.

ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard
