SMBJ17A

LITTELFUSE  SMBJ17A  二极管, TVS, 600W, 17V, DO-214AA, 整卷

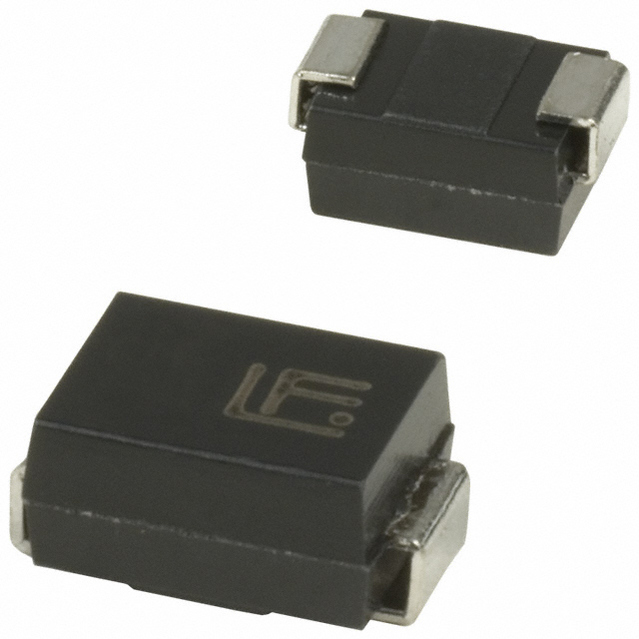

The from is a 600W, unidirectional transient voltage suppression diode in DO-214AA package. It features excellent clamping capability, low incremental surge resistance, low profile package, built-in strain relief and fast response time. The SMBJ is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. It is ideal for the protection of I/O Interfaces, VCC bus and other vulnerable circuits.

.

Reverse stand off voltage VR is 17V

.

Breakdown voltage VBR is 18.9V minimum and 20.9V maximum at 1mA

.

Maximum reverse leakage is 1µA

.

Maximum clamping voltage VC is 27.6V

.

Maximum peak pulse current is 21.8A

.

Power dissipation on infinite heat sink at TL=50°C is 5W

.

Peak forward surge current IFSM is 100A

.

Maximum instantaneous forward voltage is 5V

.

Operating temperature range from -65°C to +175°C, IEC-61000-4-2 ESD 30KV air, 30KV contact

.

ESD protection of data lines with IEC 61000-4-2 and EFT protection with IEC 61000-4-4 standard

.

EFT protection of data lines in accordance with IEC 61000-4-4 IEC801-4

.

-65 to 150°C Operating temperature range
